Baril Nautica B16 Complete Thermostatic Shower Kit - PRO-3420-16

Baril Nautica B16 Complete Thermostatic Shower Kit - PRO-3420-16

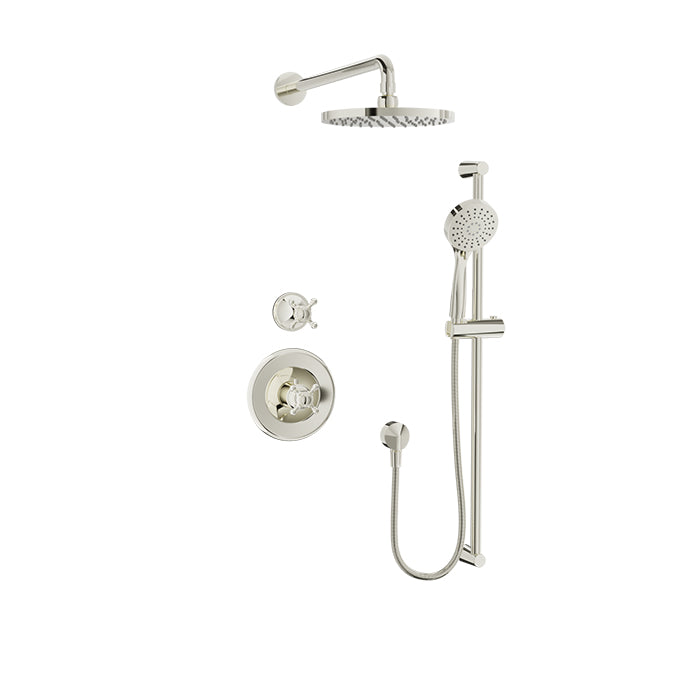

The Baril Nautica B16 PRO-3420-16 complete kit combines an 8" round shower head on a 18" wall-mounted arm with a three-spray hand shower and sliding bar. Both rough-in valves are included.

Features

• Two-accessory complete kit with two-way shared diversion.
• Two accessories can operate together.
• Maximum 1.75 gpm (6.6 L/min) per accessory at 80 psi.
• Three-spray hand shower: rain, massage and combined spray.
• Easy-to-clean shower nozzles.
• 59" (150 cm) double-interlock flexible hose with rotating nut and two non-return valves.
• PVC hose in Matte Black; brass hose in other finishes.

Specifications

• Room: Bathroom
• Collection: Nautica B16
• Model: PRO-3420-16
• Valve Type: Thermostatic
• Shower Head Size: 8"
• Shower Arm: 18" wall-mounted
• Shower Functions: Two Way
• Hand Shower: Three spray patterns
• Rough-Ins Included: Yes

Included Components

• RVA-3404-00-B — 3/4" thermostatic rough-in.
• RVA-9562-00-B — two-port diverter rough-in.
• T16-9404-00-xx — trim for 3/4" thermostatic valve.
• T16-9641-00-xx — trim for two-port diverter with shut-off.
• TET-0810-01-xx — 8" round shower head.
• BRA-1812-02-xx — 18" wall-mounted shower arm.
• DGL-2170-63-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-13-xx — wall-mounted supply elbow.

Ordering Options

The trim and rough-ins can also be ordered separately: TRO-3420-16-xx trim, RVA-3404-00-B and RVA-9562-_0-B rough-ins. Both rough-ins are already included in this complete kit. Non-shared kit: PRO-3420-16-xx-NS; non-shared trim: TRO-3420-16-xx-NS, used with RVA-3404-00-B and RVA-9562-_0-NS-B rough-ins. One accessory operates at a time.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
