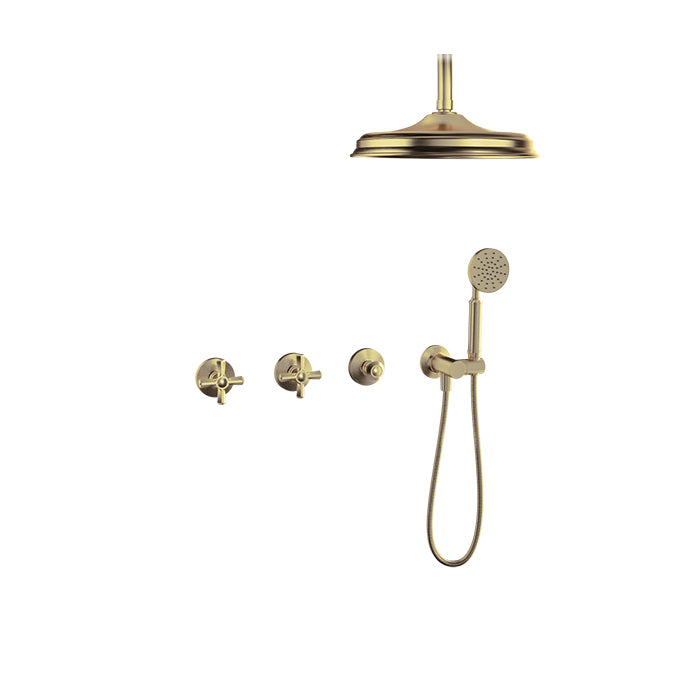

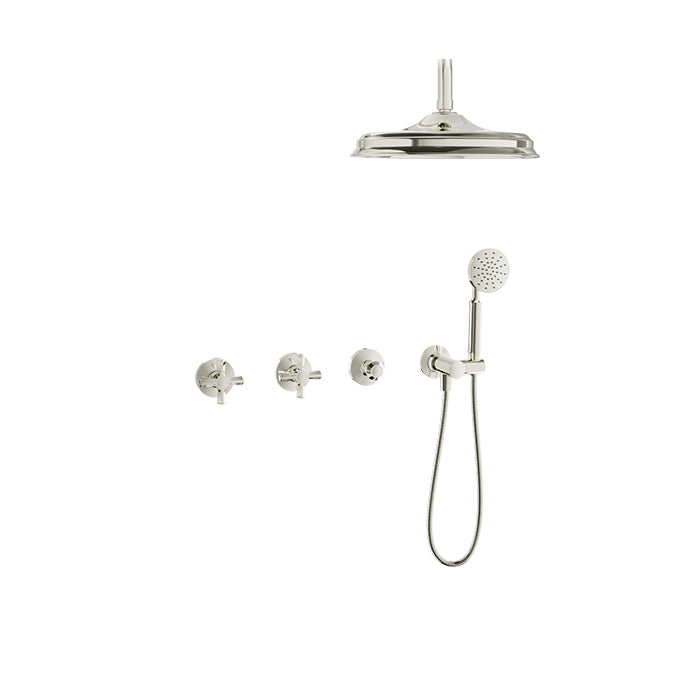

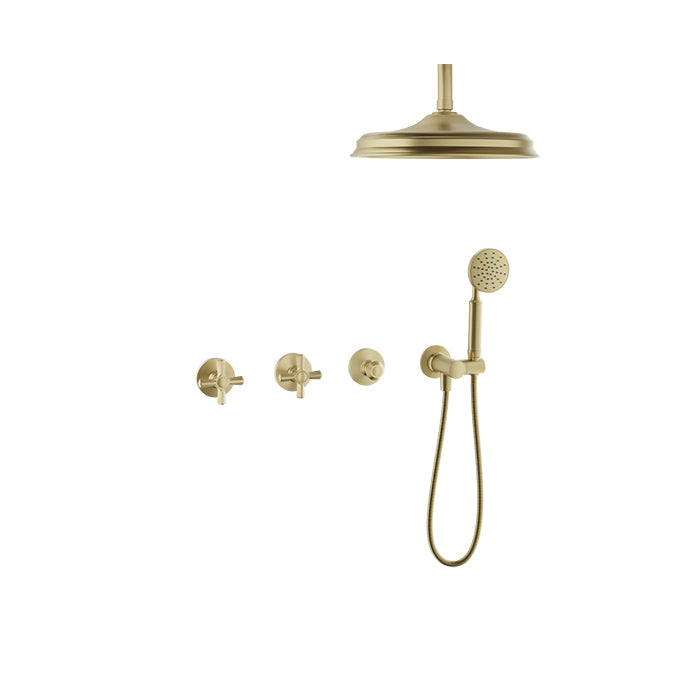

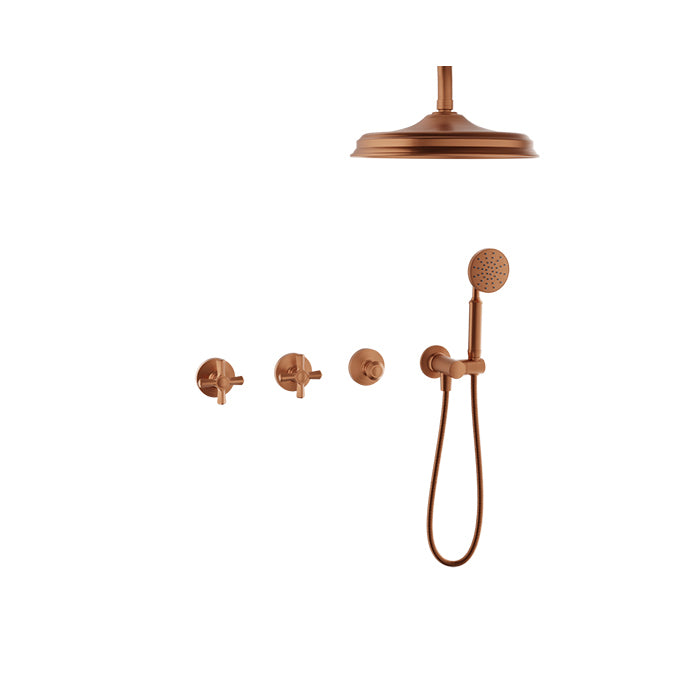

Baril Beaumont B20 Trim Only For Thermostatic Shower Kit 6" Ceiling Arm - TRR-3302-20

Baril Beaumont B20 Trim Only For Thermostatic Shower Kit 6" Ceiling Arm - TRR-3302-20

Trim Only for thermostatic shower system designed to operate two shower accessories with precise temperature control.

Features

• Trim Only
• Rough-in valves sold separately
• RVA-3453-00-B & RVA-9562-00-B
• Pictures of some finishes may not be available
• Complete thermostatic shower kit from the Beaumont B20 collection
• 2 accessories can work together
• Includes a 3/4” thermostatic valve with separate 2-port diverter
• Supports two shower accessories that can operate simultaneously
• Maximum flow rate of 2.0 GPM (7.6 LPM) per accessory at 80 PSI
• Available in non-shared (NS) configuration where one accessory operates at a time
• NS option limits flow to 1.75 GPM (6.6 LPM) at 80 PSI
• Round 10” anti-limestone showerhead for consistent spray performance
• 6” ceiling-mounted shower arm included
• Single-spray anti-limestone handshower with wall-mounted supply elbow
• Integrated hook included as part of the thermostatic trim
• Anti-limestone nozzles help reduce mineral buildup
• Trim and rough-in valves can be ordered together: PRR-3302-20

KIT COMPONENTS

• Thermostatic trim for 3/4” valve – T20-9452-00-xx

• Diverter trim for 2 or 3-port diverter – T20-9600-20-xx
• 10” round anti-limestone showerhead – TET-1020-01-xx
• 6” ceiling-mounted shower arm – RAC-0618-20-x
• 1-spray anti-limestone handshower with wall-mounted supply elbow – DSP-2620-29-xx

Specifications

• Room: Bath
• Product Type: Thermostatic Shower System
• Style: Transitional
• Mounting Location: Wall
• Installation Type: Wall
• Flow Rate: Max 2.0 GPM per accessory at 80 PSI

Certifications & Warranty

• Manufacturer limited warranty

Shop the Baril Beaumont B20 Trim Only For Thermostatic Shower Kit - TRR-3302-20 at e-unoia.com

DOCUMENTS & SPECIFICATION

Parts Breakdown: Here

Waterway Diagram: Here
