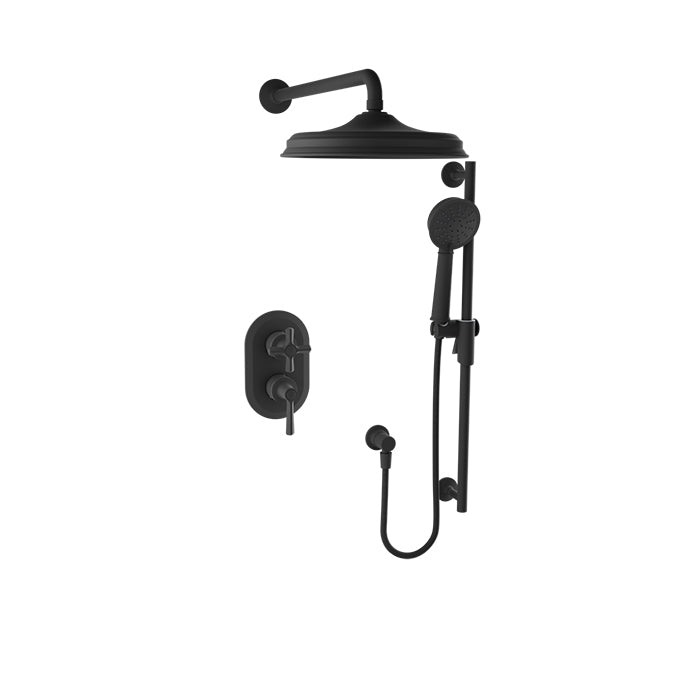

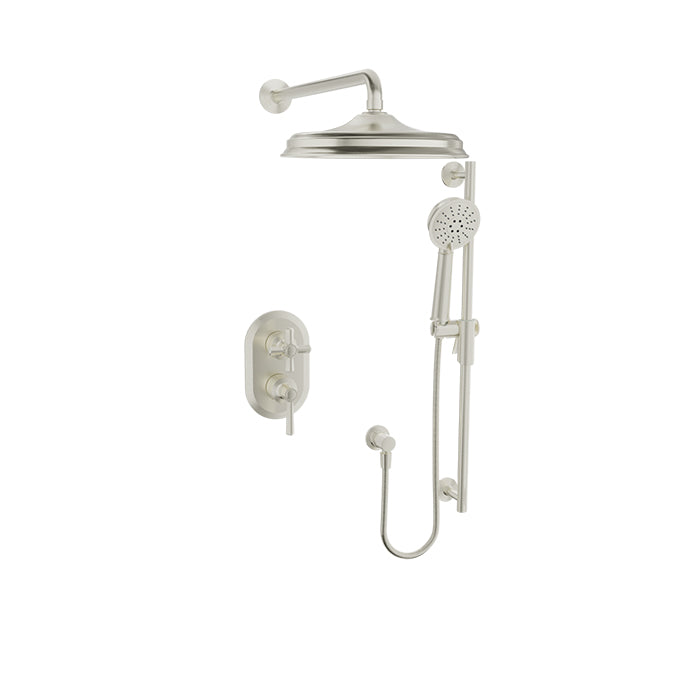

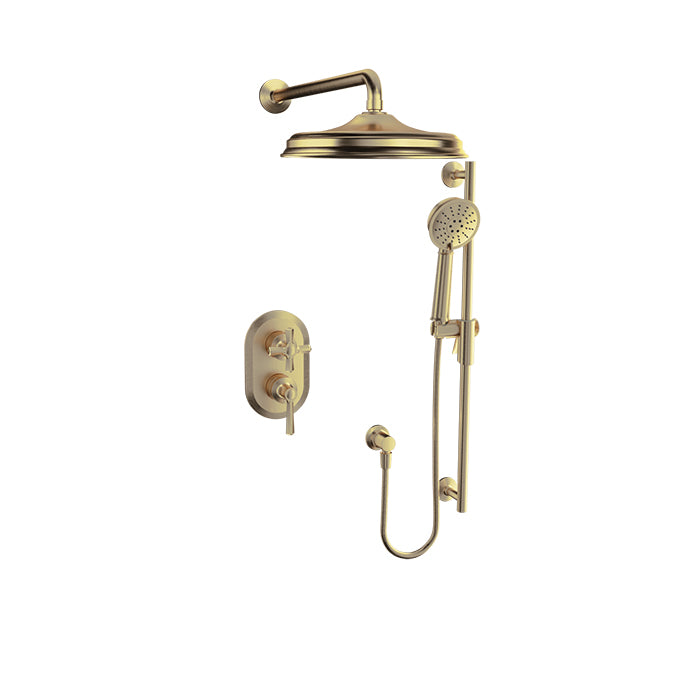

Baril Beaumont B20 Complete Pressure Balanced Shower Kit - PRO-2802-20

Baril Beaumont B20 Complete Pressure Balanced Shower Kit – PRO-2802-20

Complete pressure balanced shower kit with a 2-way diverter.

Features

• 2 accessories kit
• Max 2 gpm (7.6 l/min) at 80 psi per accessory
• Optional 6" Vertical shower arm
• 3-spray hand shower
• 2 accessories can work together
• Rough and trim can be ordered separately
  • Trim code: TRO-2802-20-xx
  • Rough code: RVA-9181-00-B or RVA-9181-P0-B
  • NS option: one accessory at a time, max 1.75 gpm (6.6 l/min) at 80 psi
• Trim code with reduced flow (NS): TRO-2802-20-xx-NS
• Rough code with non-shared ports (NS): RVA-9181-00-NS-B or RVA-9181-P0-NS-B
• Water-saving NS option available
• Available finishes: Chrome, Matte Black, Satin Brass, Warm Gold, White, Brushed Nickel, Polished Nickel, Satin Copper, Venetian Bronze, Gold
• Pictures of some finishes might not be available

KIT COMPONENTS

• RVA-9181-00-B Rough-In Valve
• B20-9182-00-xx complete pressure balanced valve with 2-way diverter
• TET-1020-01-xx 10” round shower head
• BRA-1812-20-xx 18” shower arm

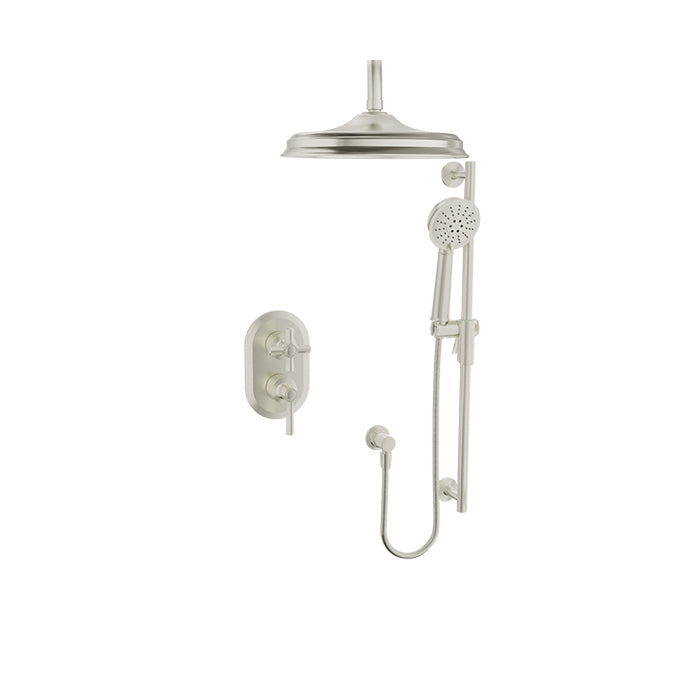

• RAC-0618-20-xx 6" Ceiling mount shower arm (if selected)
• DGL-2068-53-xx 3-spray sliding shower bar
• RAC-9001-49-xx wall-mount supply elbow

Specifications

• Room: Bathroom
• Product Type: Shower Kit
• Style: Modern
• Hole Configuration: 2-way diverter
• Mounting Location: Wall
• Installation Type: Concealed rough-in
• Flow Rate: 2 gpm (7.6 l/min) at 80 psi per accessory

Certifications & Warranty

• Limited manufacturer warranty included.

Shop the Baril Beaumont B20 Complete Pressure Balanced Shower Kit – PRO-2802-20 at e-unoia.com

DOCUMENTS & SPECIFICATION

Parts Breakdown: Here

Waterway Diagram: Here
