Baril Air B80 Complete Thermostatic Shower Kit (Without Handles) - PRR-3302-80

Baril Air B80 Complete Thermostatic Shower Kit (Without Handles) - PRR-3302-80

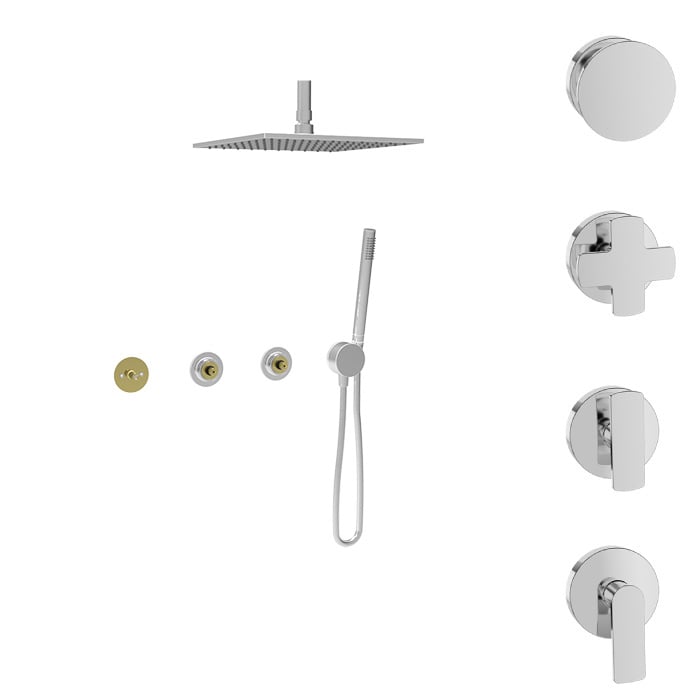

The Baril Air B80 PRR-3302-80 combines a 10" square ceiling-mounted shower head with a 1-spray wall-mounted hand shower and thermostatic control. The rough-in valves are included; both handle kits are sold separately.

Features

• Two-accessory complete shower kit with shower head and hand shower.
• Maximum flow rate: 1.75 gpm (6.6 L/min) at 80 psi per accessory.
• 1-spray hand shower on a wall-mounted supply elbow.
• Two accessories can operate simultaneously in the standard shared-port configuration.
• 10" square shower head with a 6" ceiling-mounted shower arm.
• Hook integrated into the thermostatic valve trim.
• Thermostatic and 2-port diverter rough-ins included.

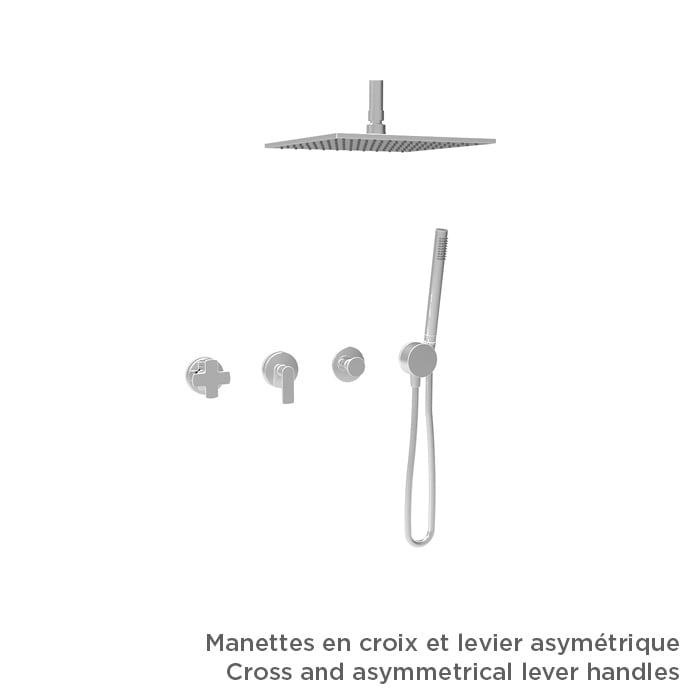

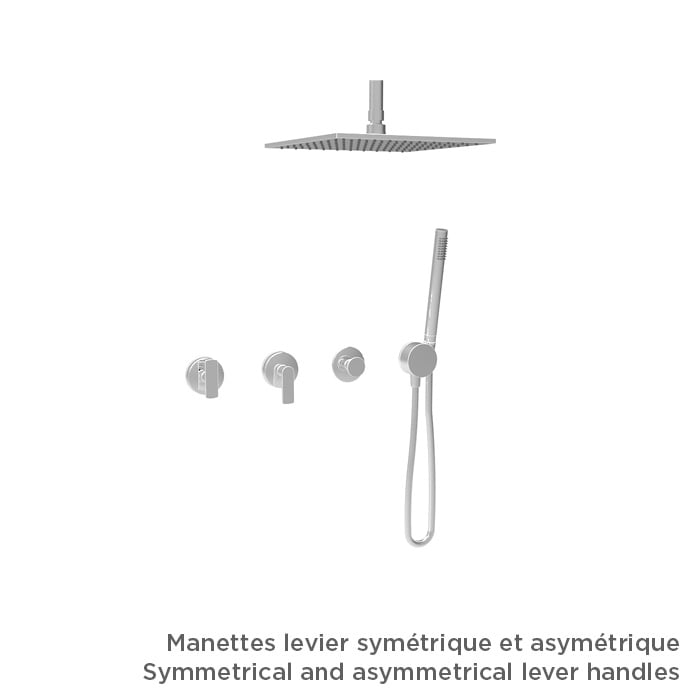

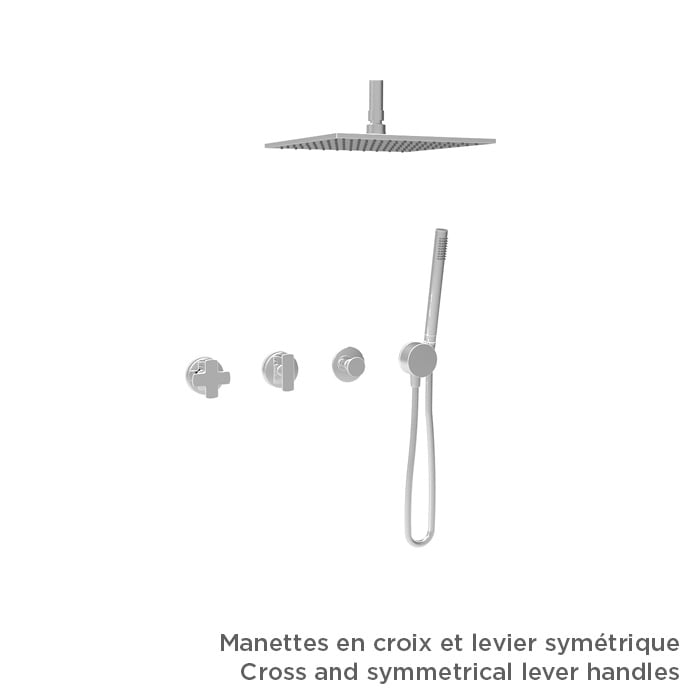

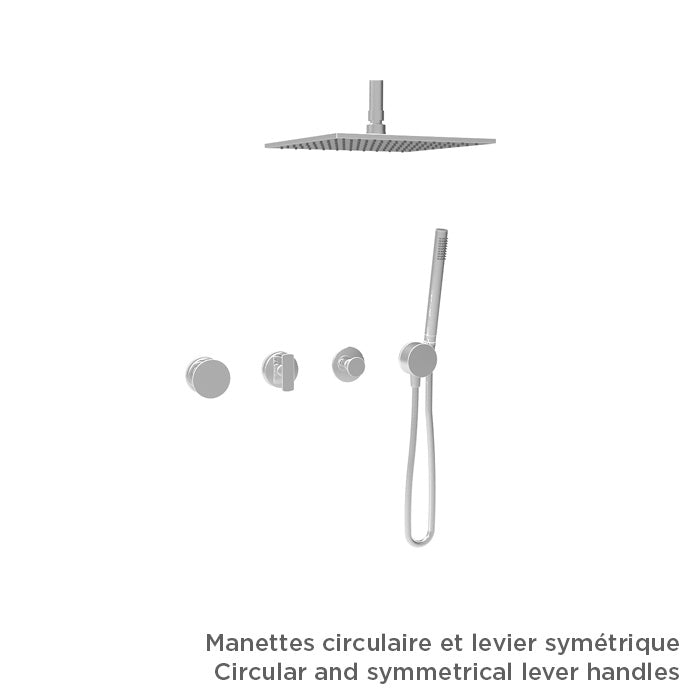

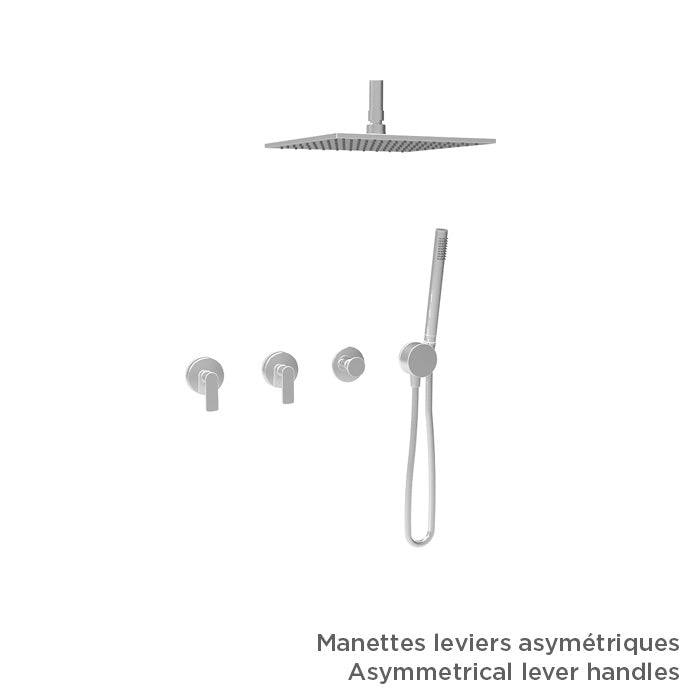

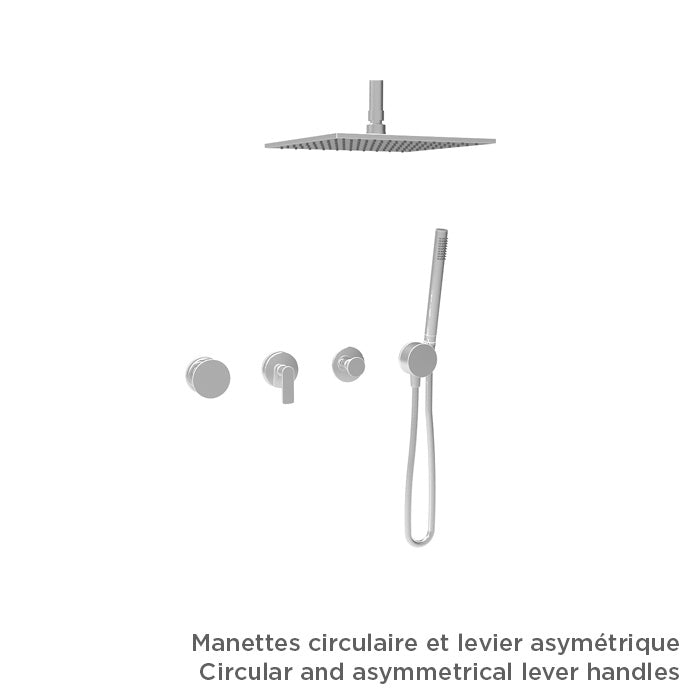

• Order TWO handle kits separately: M80-9453-_0-xx and M80-9500-_0-xx.
• Trim and rough-ins can also be ordered separately: TRR-3302-80-xx; RVA-3453-00-B and RVA-9562-_0-B.
• Optional NS configuration operates one accessory at a time.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Collection: Air B80
• Model: PRR-3302-80
• Valve type: Thermostatic
• Shower functions: Two Way
• Shower head size: 10"
• Shower arm: 6", ceiling-mounted
• Hand shower: 1-spray
• Rough-in included: Yes
• Handles included: No

Included Components

• RVA-3453-00-B – Thermostatic rough-in with 3/4" female NPT connections.
• T80-9453-00-xx – 3/4" thermostatic valve trim, without handle.
• RVA-9562-00-B – 2-port diverter rough-in (NPT / welded copper).
• T80-9649-00-xx – 2-port diverter trim with off, without handle.
• TET-1011-01-xx – 10" square shower head.
• RAC-0618-02-xx – 6" ceiling-mounted shower arm.
• DSP-2604-21-xx – 1-spray hand shower on wall-mounted supply elbow.

Required for Installation

• TWO handle kits are required: M80-9453-_0-xx AND M80-9500-_0-xx, sold separately.

Separate Ordering Options

• As an alternative to the complete kit, order trim TRR-3302-80-xx with BOTH rough-ins: RVA-3453-00-B and RVA-9562-_0-B.
• Non-shared complete kit: PRR-3302-80-xx-NS.
• Non-shared trim only: TRR-3302-80-xx-NS.
• NS rough-ins: RVA-3453-00-B AND RVA-9562-_0-NS-B.
• The NS configuration operates one accessory at a time, with a maximum flow rate of 1.75 gpm (6.6 L/min) at 80 psi per accessory.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
