Baril Air B80 Complete Thermostatic Pressure-Balanced Shower Kit (Without Handles) - PRR-4203-80

Baril Air B80 Complete Thermostatic Pressure-Balanced Shower Kit (Without Handles) - PRR-4203-80

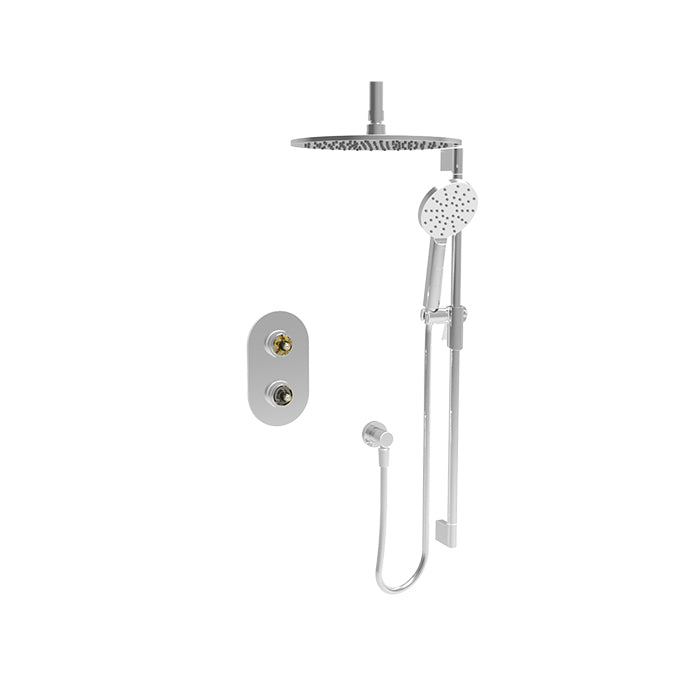

The Baril Air B80 PRR-4203-80 combines a 10" round ceiling-mounted shower head with a 3-spray sliding hand shower and thermostatic pressure-balanced control. The rough-in valve is included; the handle kit is sold separately.

Features

• Two-accessory complete shower kit with shower head and hand shower.
• Maximum flow rate: 1.75 gpm (6.6 L/min) at 80 psi per accessory.
• 3-spray hand shower on a sliding bar.
• Two accessories can operate simultaneously in the standard shared-port configuration.
• 10" round shower head with a 6" ceiling-mounted shower arm.
• Rough-in valve included.
• Order handle kit M80-9520-__0-xx separately to complete the product.
• Trim and rough-in can also be ordered separately: TRR-4203-80-xx; RVA-9501-00-B or RVA-9501-P0-B.
• Optional NS configuration operates one accessory at a time.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Collection: Air B80
• Model: PRR-4203-80
• Valve type: Thermostatic Pressure-Balanced
• Shower functions: Two Way
• Shower head size: 10"
• Shower arm: 6", ceiling-mounted
• Hand shower: 3-spray
• Rough-in included: Yes
• Handles included: No

Included Components

• RVA-9501-00-B – 1-2-3-way thermostatic pressure-balanced rough-in (NPT / welded copper).

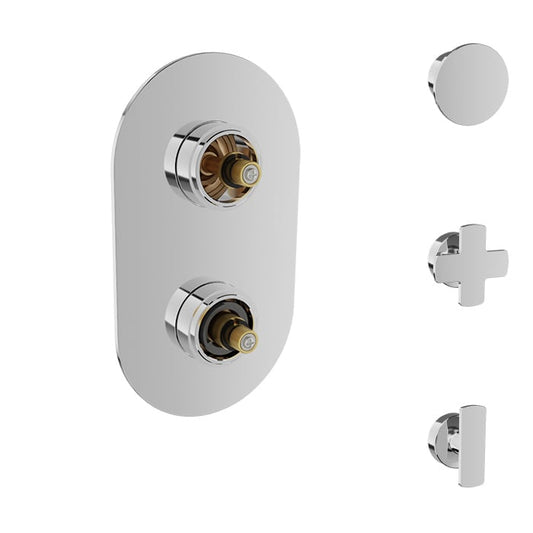

• T80-9521-01-xx – Shower valve trim with 2-way diverter, without handles.
• TET-1010-01-xx – 10" round shower head.
• RAC-0618-02-xx – 6" ceiling-mounted shower arm.
• DGL-2580-53-xx – 3-spray sliding shower bar.
• RAC-9001-16-xx – Wall-mounted supply elbow.

Required for Installation

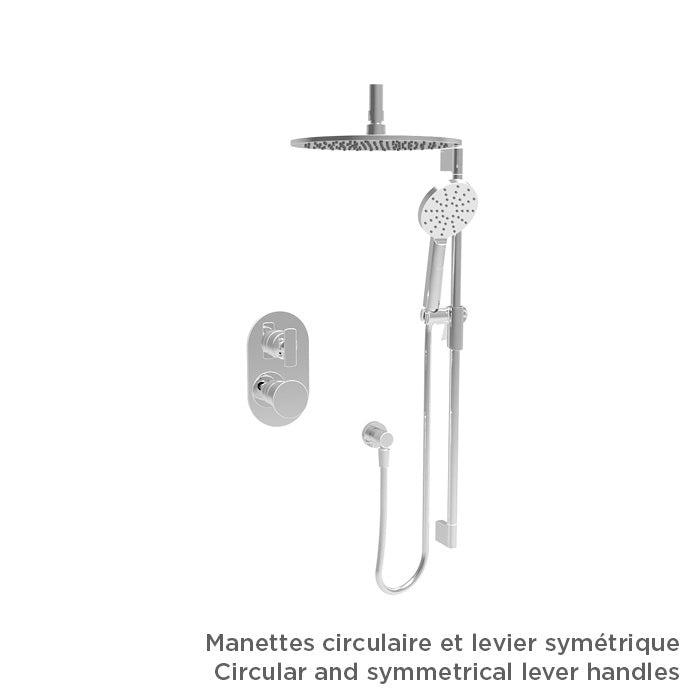

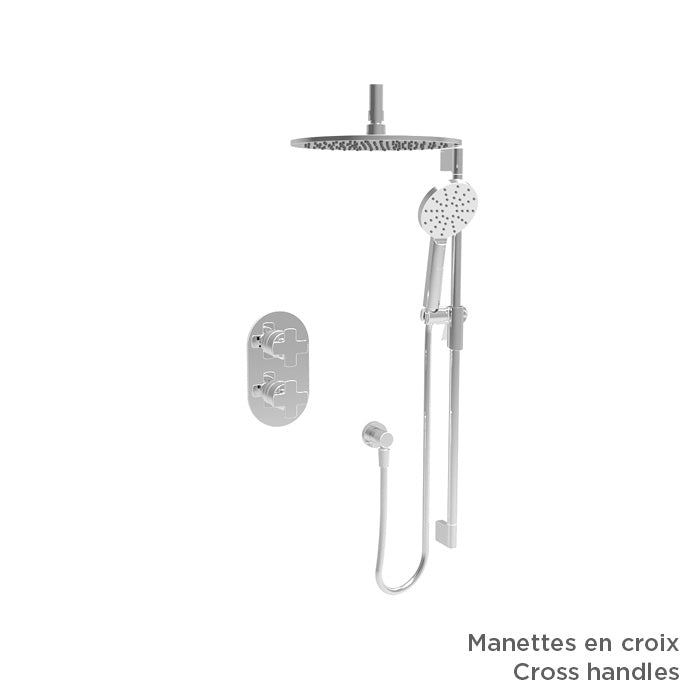

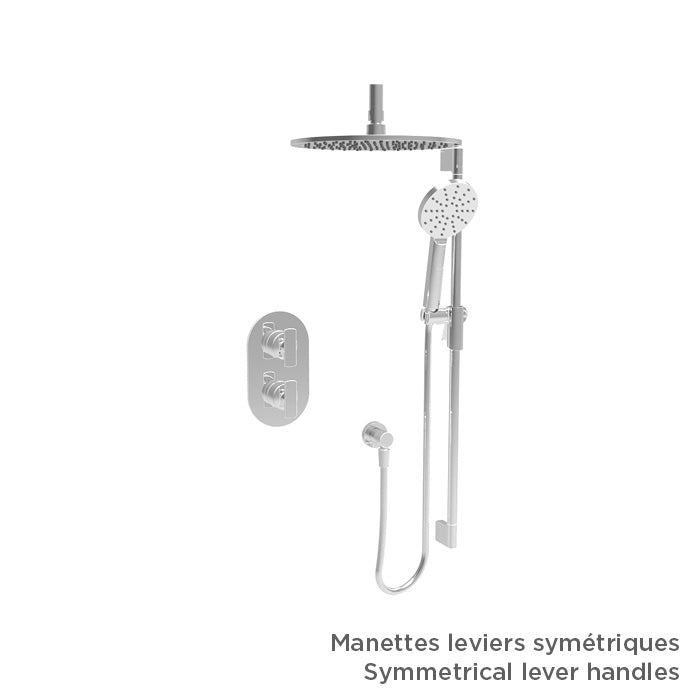

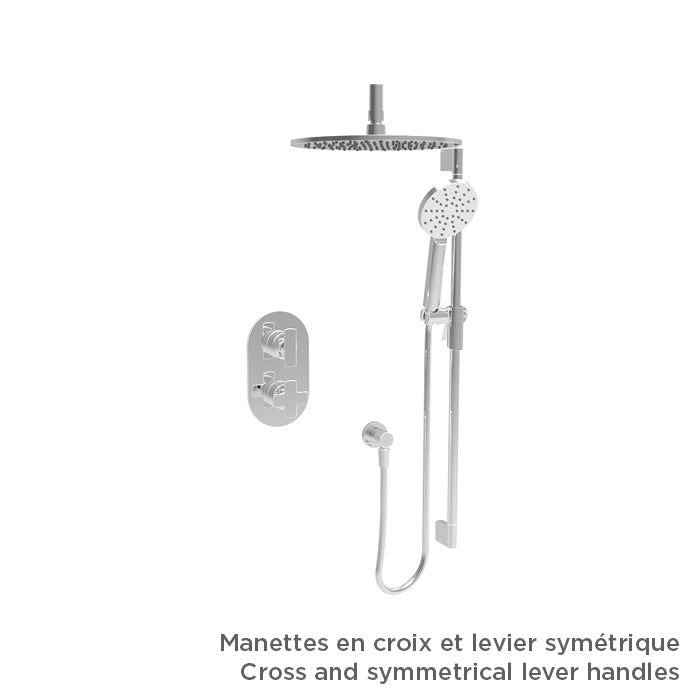

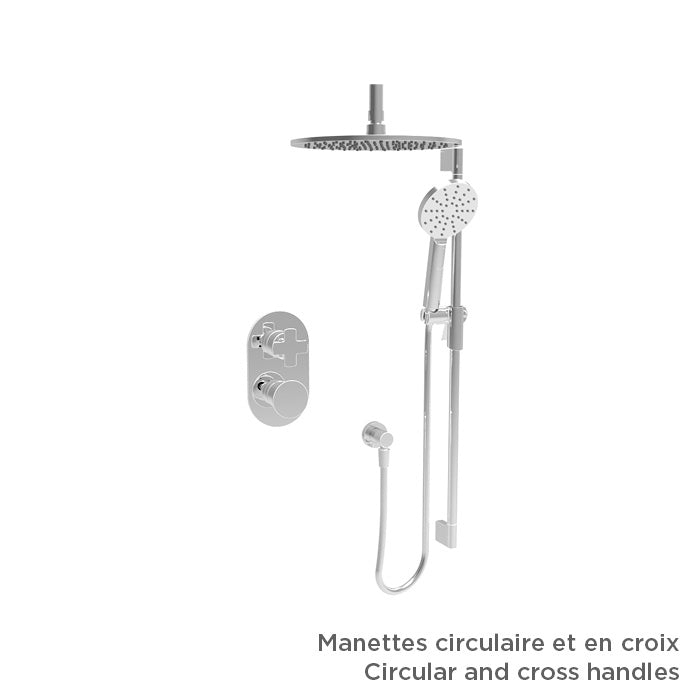

• M80-9520-__0-xx – Required handle kit, sold separately.

Separate Ordering Options

• As an alternative to the complete kit, order trim TRR-4203-80-xx with ONE compatible rough-in: RVA-9501-00-B or RVA-9501-P0-B.
• Non-shared complete kit: PRR-4203-80-xx-NS.
• Non-shared trim only: TRR-4203-80-xx-NS.
• The NS configuration operates one accessory at a time, with a maximum flow rate of 1.75 gpm (6.6 L/min) at 80 psi per accessory.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
