Baril Air B80 Complete Pressure-Balanced Shower Kit (Handle Options) - PRR-2811-80

Baril Air B80 Complete Pressure-Balanced Shower Kit (Handle Options) - PRR-2811-80

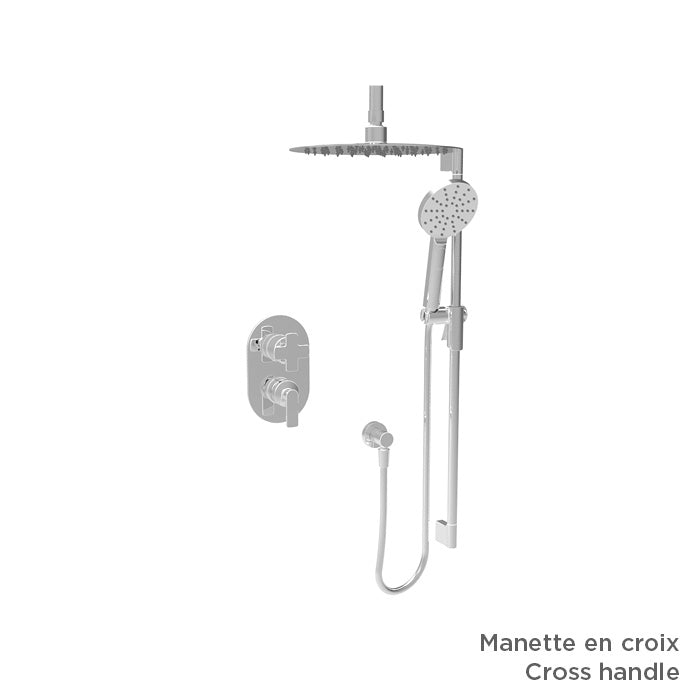

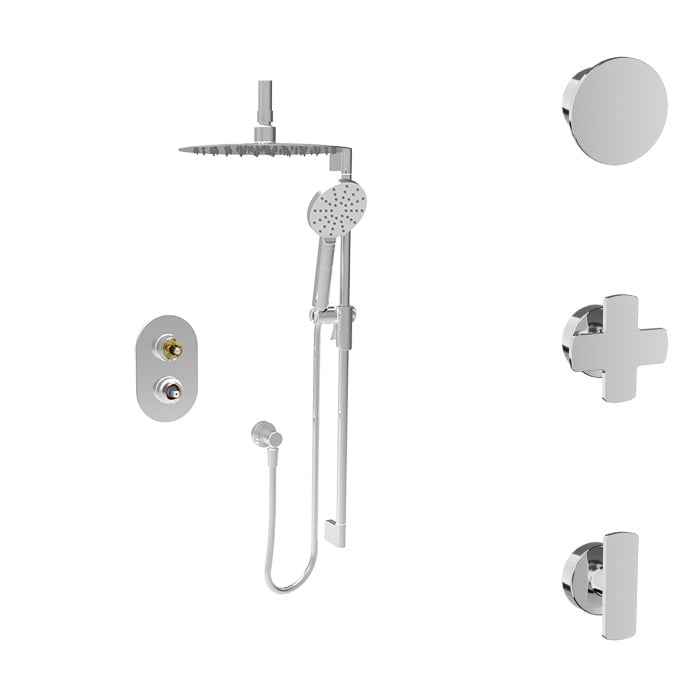

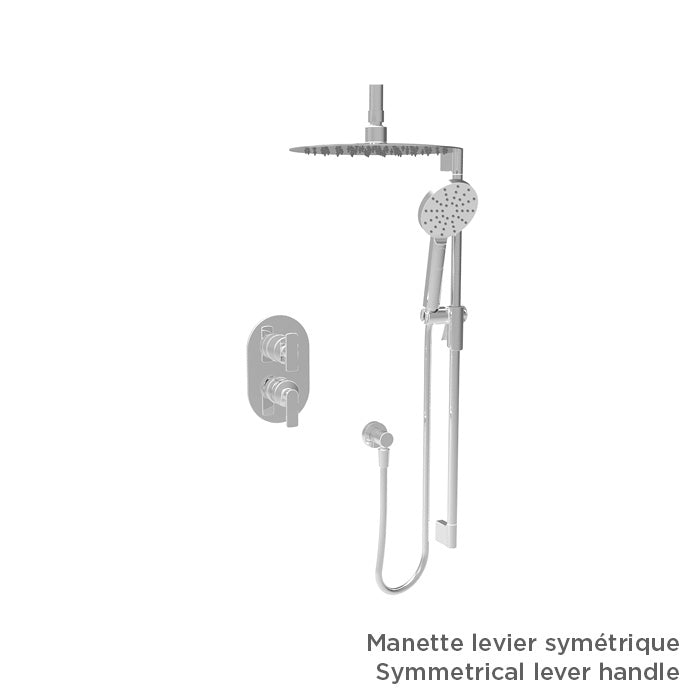

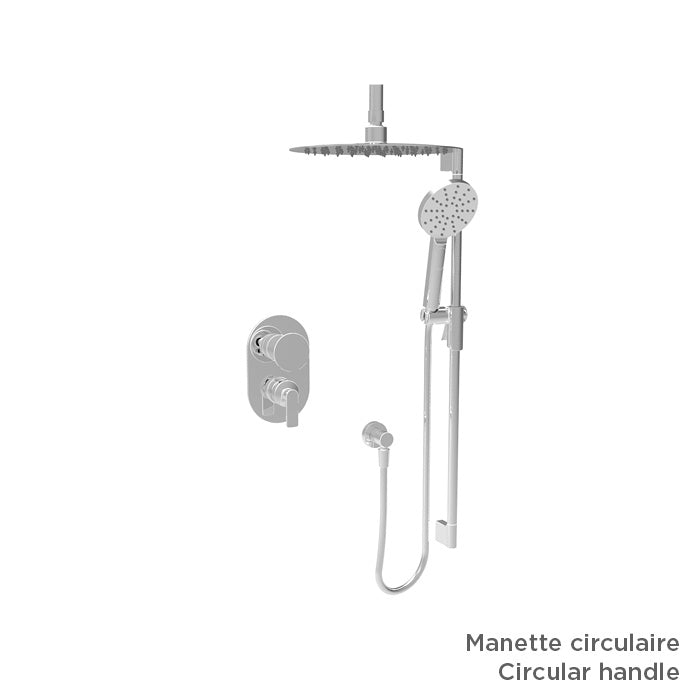

The Baril Air B80 PRR-2811-80 combines a 10" round ceiling-mounted shower head with a 3-spray sliding hand shower. This complete pressure-balanced kit includes the rough-in valve; the handle kit is sold separately.

Features

• Two-accessory complete kit with shower head and hand shower.
• Maximum shower flow rate: 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• 3-spray push-button hand shower with rain, mist and combined spray modes.
• Sliding shower bar with an easy-to-move metal slider, integrated hook and 59" (150 cm) flexible hose.
• Easy-to-clean shower nozzles.
• 10" round shower head with a 6" ceiling-mounted shower arm.
• Two accessories can operate simultaneously in the standard shared-port configuration.
• Rough-in valve included.
• Order handle kit M80-9180-_4-xx separately to complete the product.
• Trim and rough-in can also be ordered separately: TRR-2811-80-xx; RVA-9181-00-B or RVA-9181-P0-B.
• Optional NS configuration operates one accessory at a time.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Collection: Air B80
• Model: PRR-2811-80
• Valve type: Pressure-Balanced
• Shower functions: Two Way
• Shower head size: 10"
• Shower arm: 6", ceiling-mounted
• Hand shower: 3-spray
• Rough-in included: Yes
• Handles included: No

Included Components

• RVA-9181-00-B – 2-way pressure-balanced rough-in (NPT / welded copper).
• T80-9181-00-xx – Shower valve trim with 2-way diverter, without handles.
• TET-1013-01-xx – 10" round shower head.
• RAC-0618-02-xx – 6" ceiling-mounted shower arm.
• DGL-2580-53-xx – 3-spray sliding shower bar.
• RAC-9001-16-xx – Wall-mounted supply elbow.

Required for Installation

• M80-9180-_4-xx – Required handle kit, sold separately.

Separate Ordering Options

• As an alternative to the complete kit, order trim TRR-2811-80-xx with ONE compatible rough-in: RVA-9181-00-B or RVA-9181-P0-B.
• Non-shared complete kit: PRR-2811-80-xx-NS.
• Non-shared trim only: TRR-2811-80-xx-NS.
• Non-shared rough-in: RVA-9181-00-NS-B or RVA-9181-P0-NS-B.
• The NS configuration operates one accessory at a time.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
