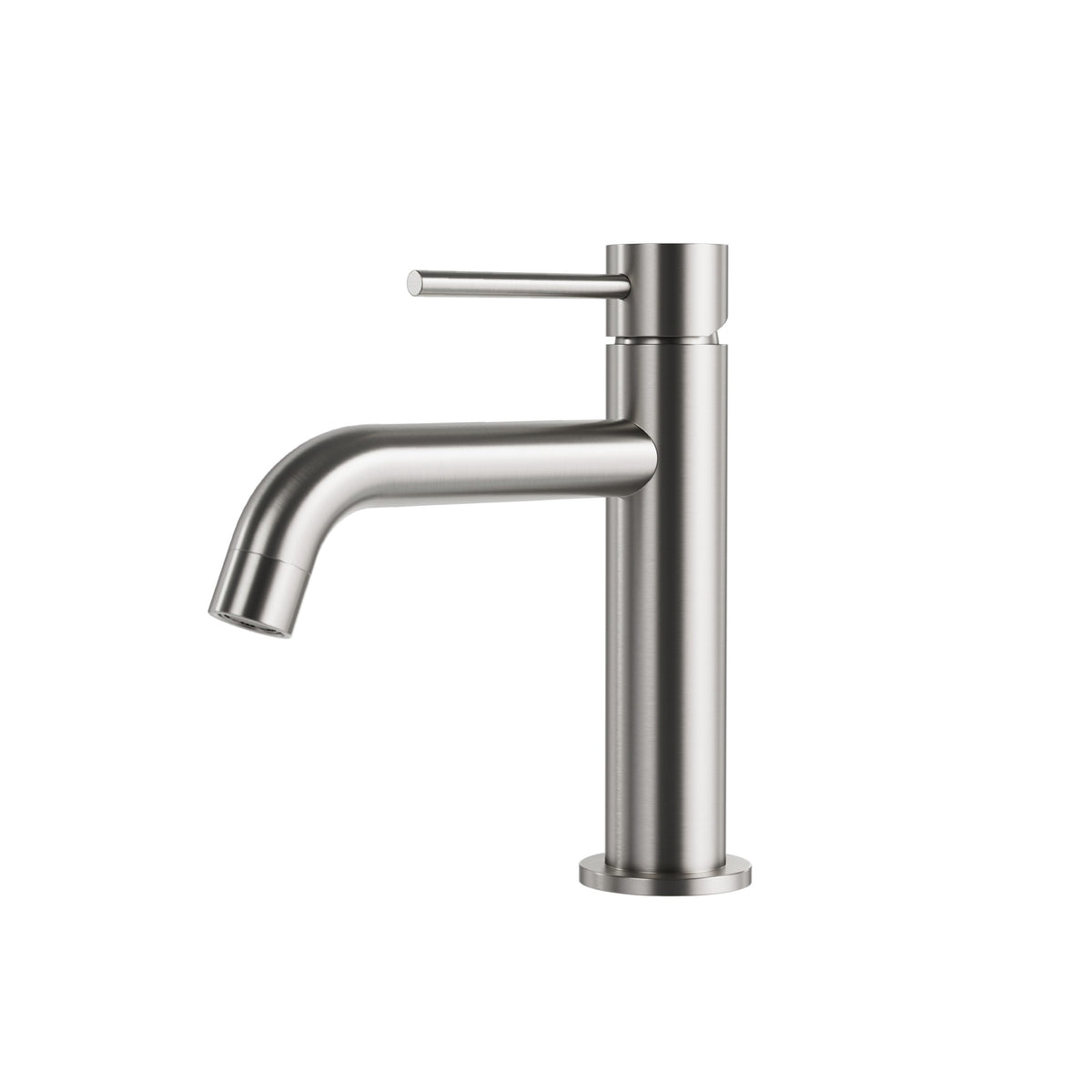

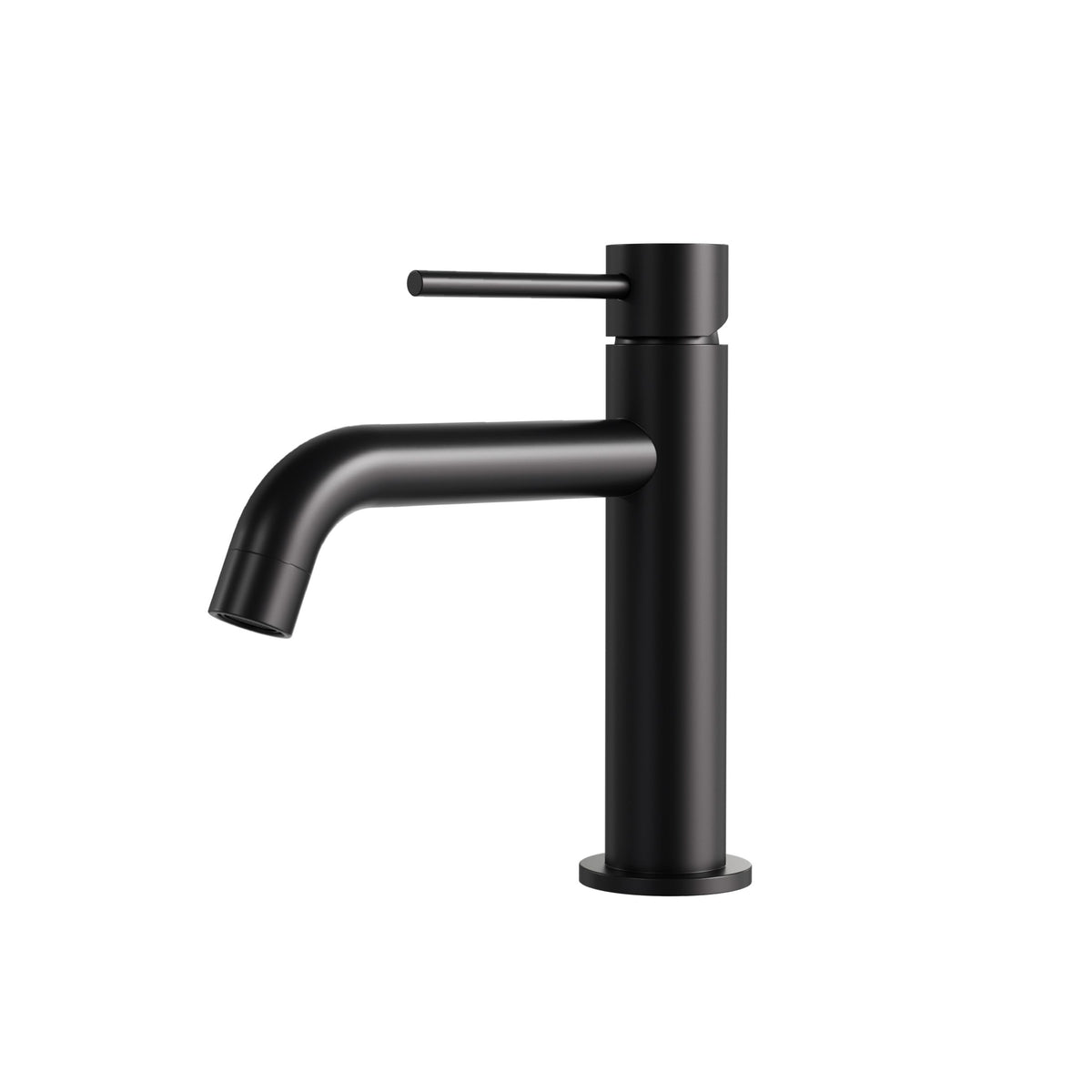

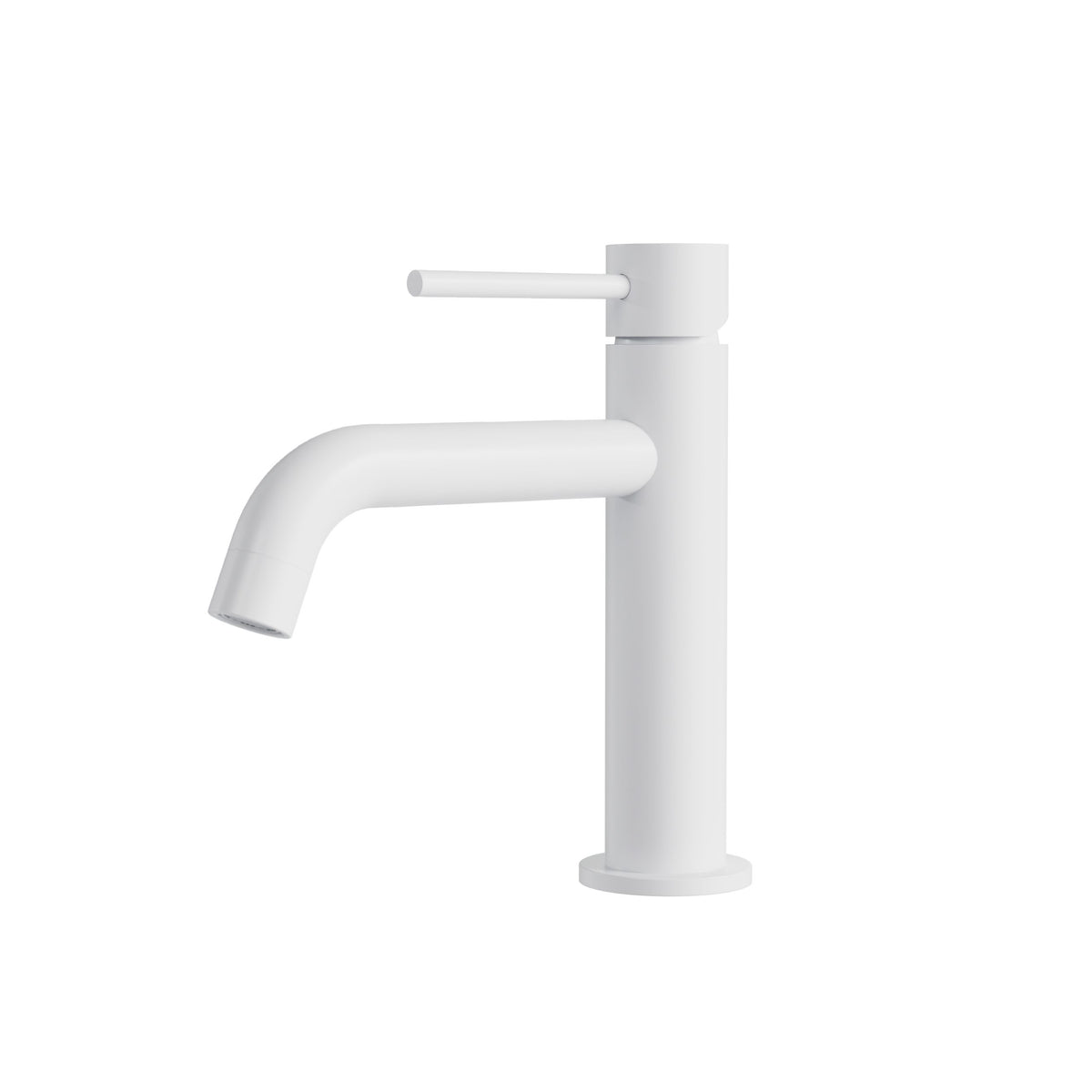

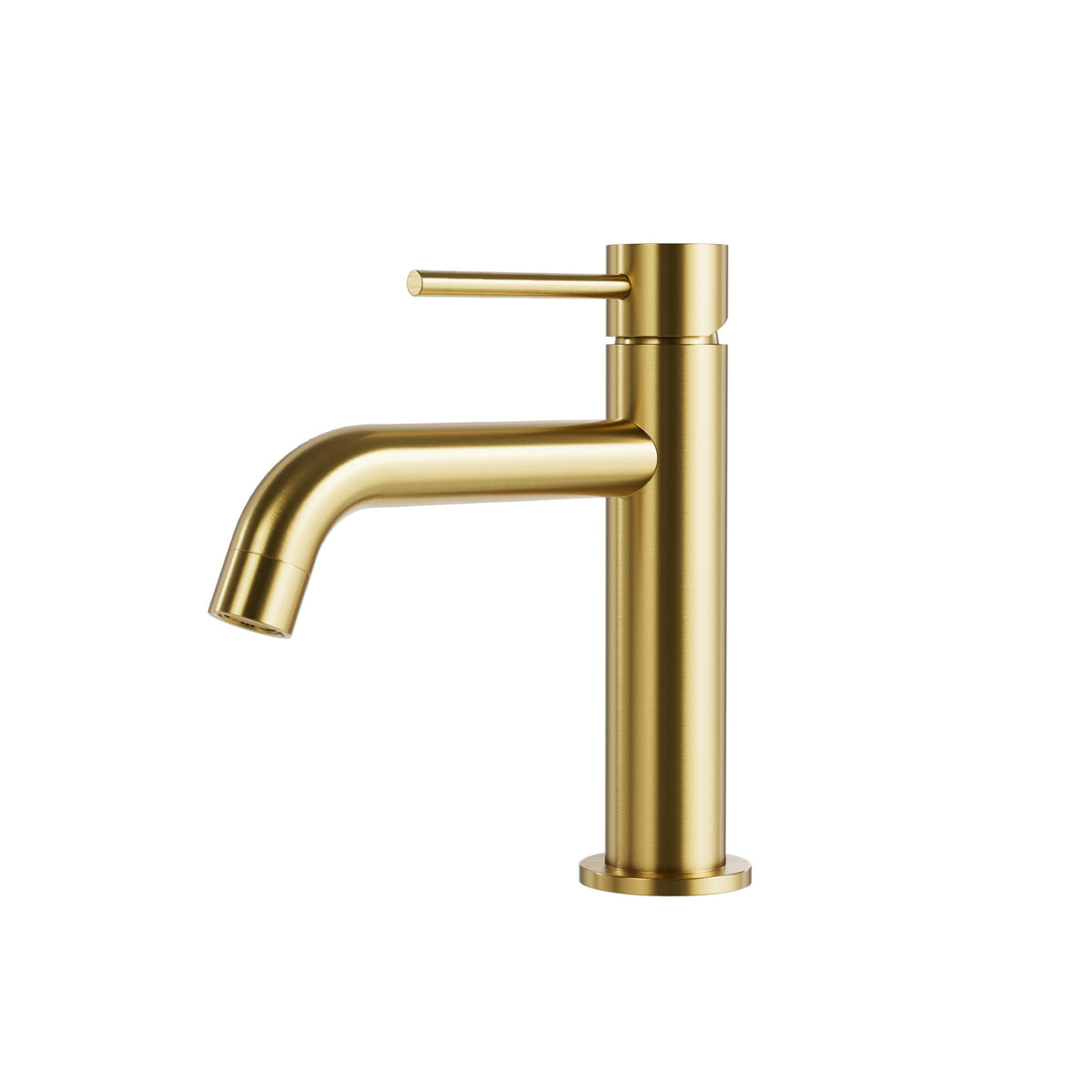

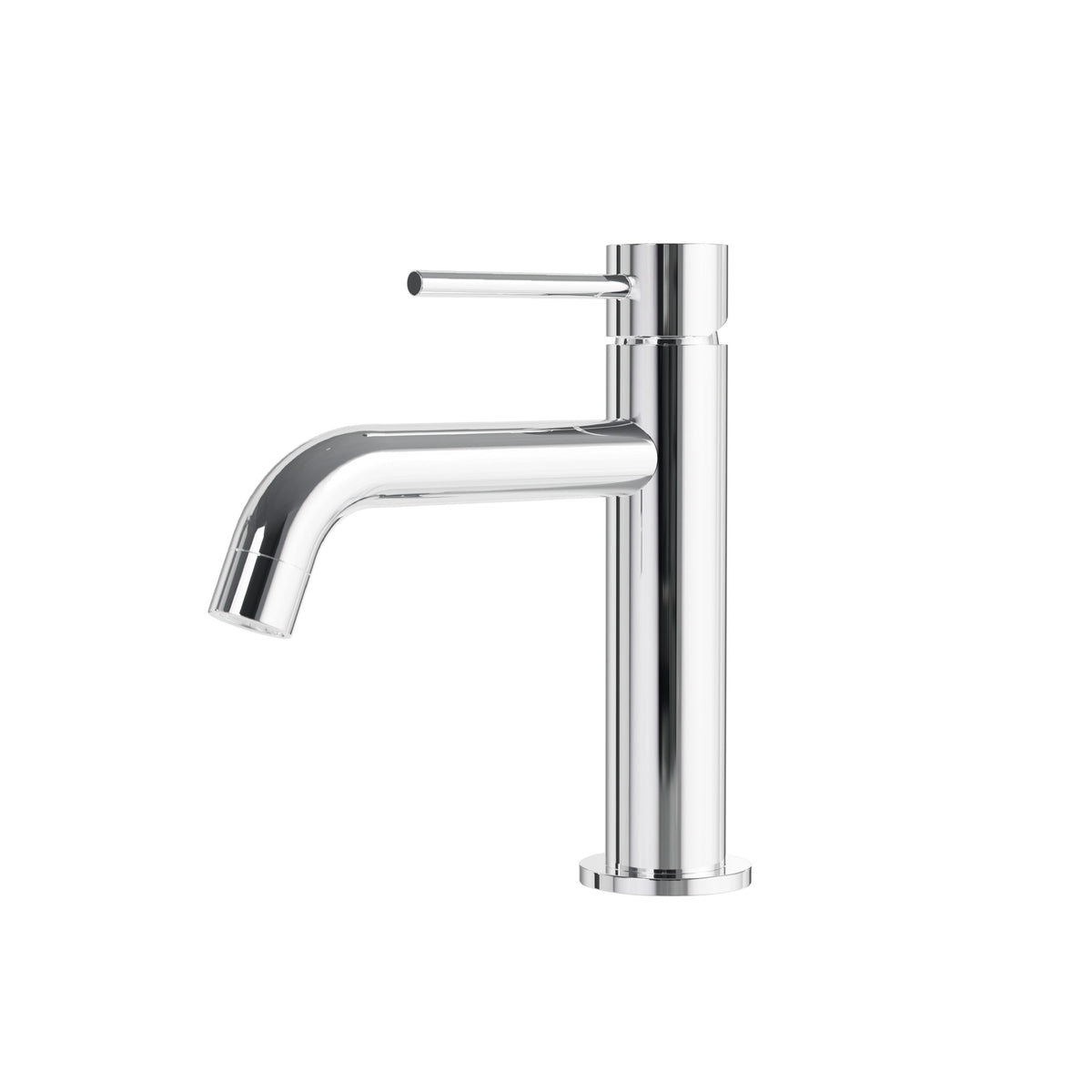

Aquabrass Xpress Umix Single-hole Lavatory Faucet - 62314

SKU:ABFB62314PC

Aquabrass Xpress Umix Single-hole Lavatory Faucet - 62314

A single-hole bathroom faucet with a single lever, laminar water stream and included press pop-up drain with overflow.

Features

Solid brass construction.
Laminar aerator produces a clear water stream.
Single-lever operation.
Adjustable temperature limit stop.
Press pop-up drain with overflow included: ABDR00899.
3/8" water connections.
Ceramic cartridge ALT75554500 (formatted ALT7-555-45-00 in the installation guide).
Flow rate: 1.2 gpm (4.5 L/min) at 60 psi.
Mounting-hole diameter: 1 3/8".
Counter depth: minimum 1 3/8", maximum 2 ...Read more

Aquabrass Xpress Umix Single-hole Lavatory Faucet - 62314

A single-hole bathroom faucet with a single lever, laminar water stream and included press pop-up drain with overflow.

Features

Solid brass construction.
Laminar aerator produces a clear water stream.
Single-lever operation.
Adjustable temperature limit stop.
Press pop-up drain with overflow included: ABDR00899.
3/8" water connections.
Ceramic cartridge ALT75554500 (formatted ALT7-555-45-00 in the installation guide).
Flow rate: 1.2 gpm (4.5 L/min) at 60 psi.
Mounting-hole diameter: 1 3/8".
Counter depth: minimum 1 3/8", maximum 2 3/8", as specified by the manufacturer.
UMIX components allow colour customization; optional 62301 knurled handle base is sold separately.

Specifications

Room: Bathroom
Product type: Single-hole lavatory faucet
Collection: UMIX
Model: 62314
Installation: Deck mount; one hole
Handle: Single lever
Material: Solid brass
Flow: 1.2 gpm (4.5 L/min) at 60 psi
Overall height: 7 3/16" (183 mm)
Spout outlet height: 3 1/4" (83 mm)
Spout reach shown: 5 11/16" (144 mm)
Overall projection shown: 7 1/16" (179 mm)
Body diameter: 1 3/8" (35 mm)
Base diameter: 2" (50 mm)
Lever length shown: 2 7/8" (73 mm)
Mounting hole: 1 3/8"
Counter depth: 1 3/8" minimum to 2 3/8" maximum
Water connections: 3/8"
Maximum temperature setting: 120°F (49°C) or lower, per installation guide

Included Components

62314 faucet with lever, ceramic cartridge and laminar aerator.
ABDR00899 press pop-up drain with overflow.
Flexible supply hoses and faucet mounting assembly shown in the installation guide.

Required for Installation

No separately purchased, model-specific rough-in is specified. Install through a 1 3/8" mounting hole with 3/8" supply connections and an overflow-compatible sink for the included drain.

Optional Accessories

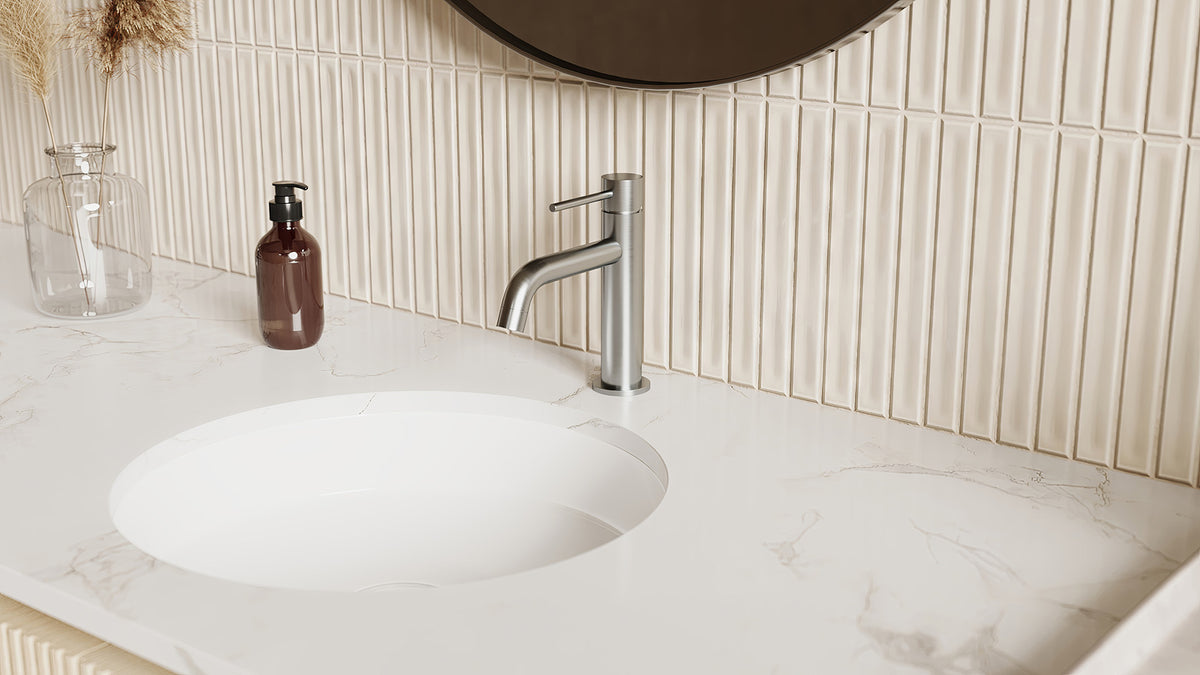

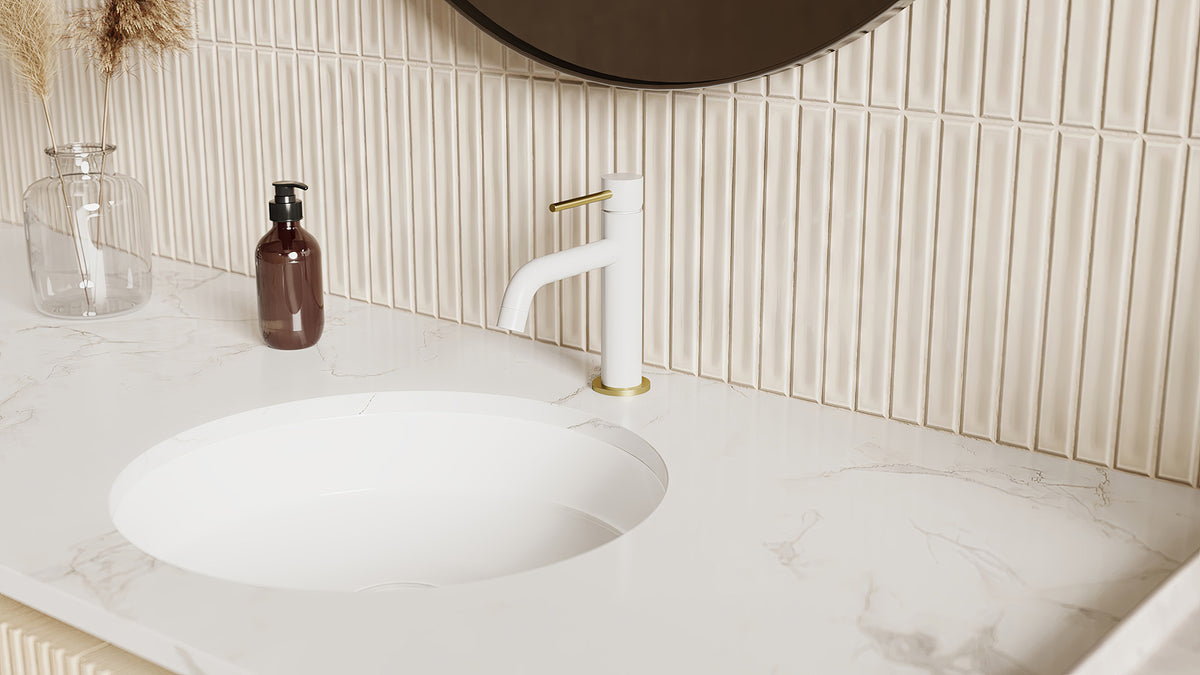

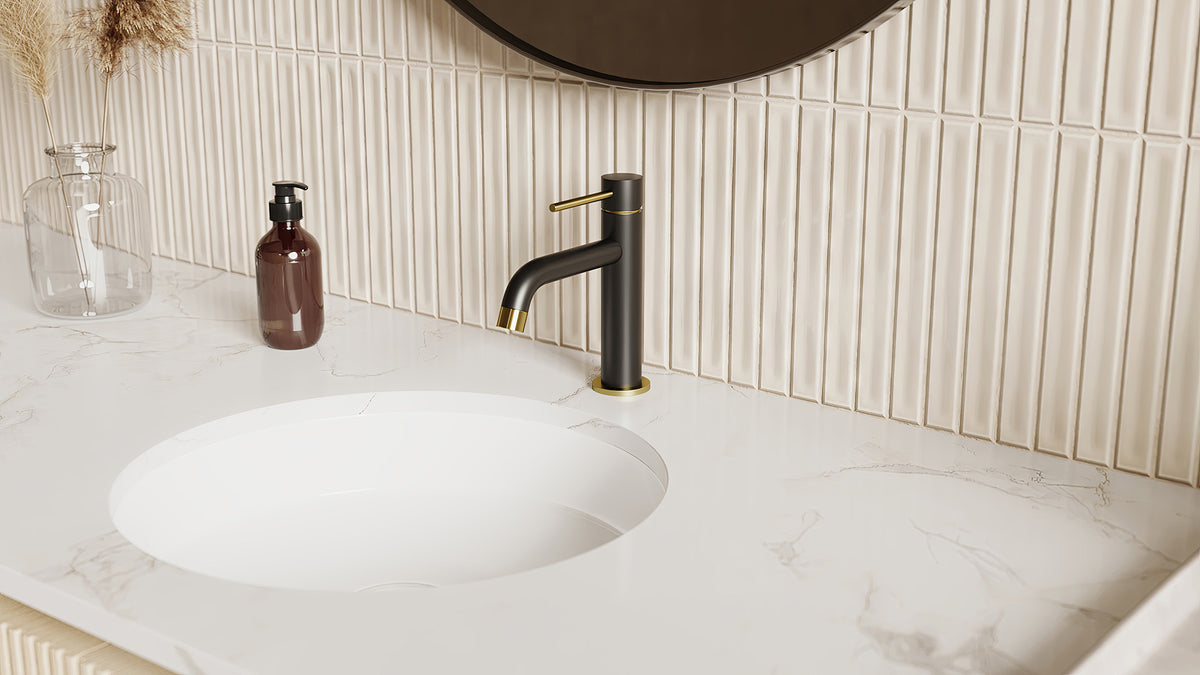

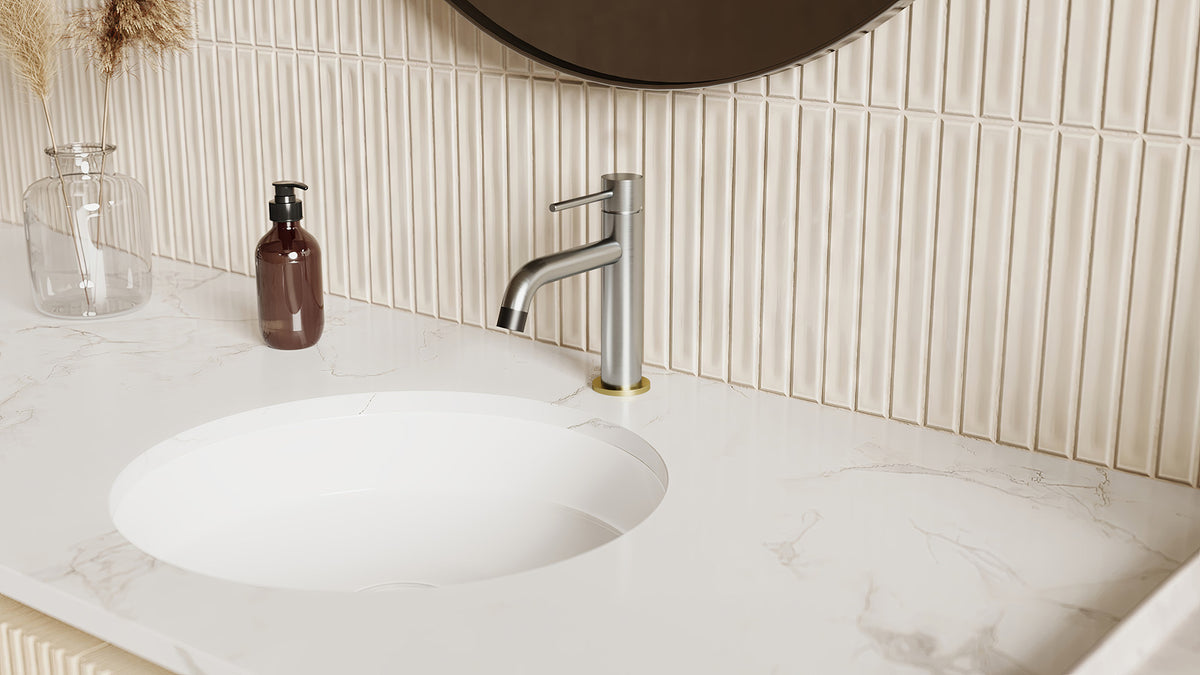

The 62301 UMIX knurled handle base is an optional, separately purchased accessory. Manufacturer lifestyle photos may show contrasting accent configurations; the listed variants are the five standard single-finish SKUs.
