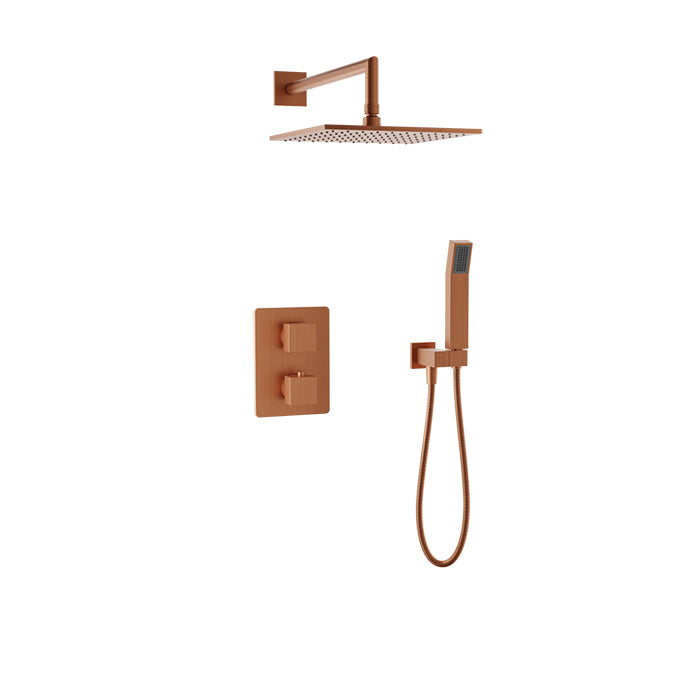

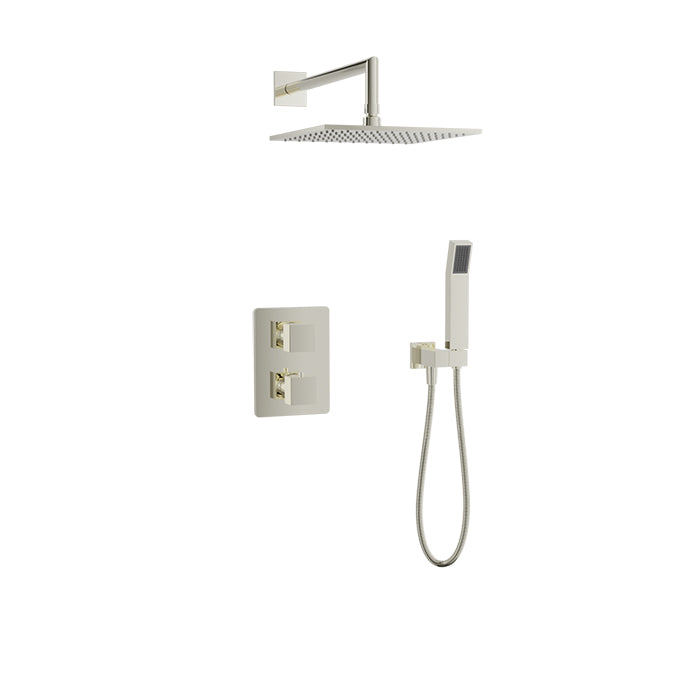

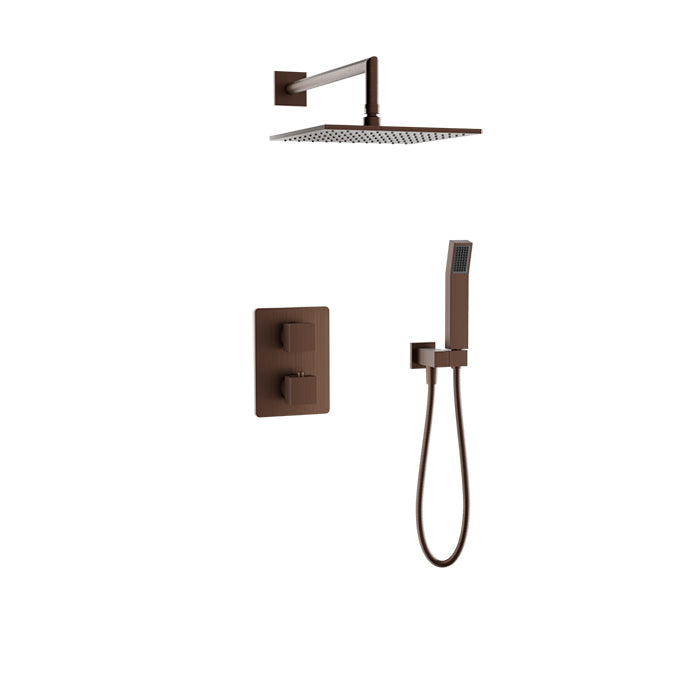

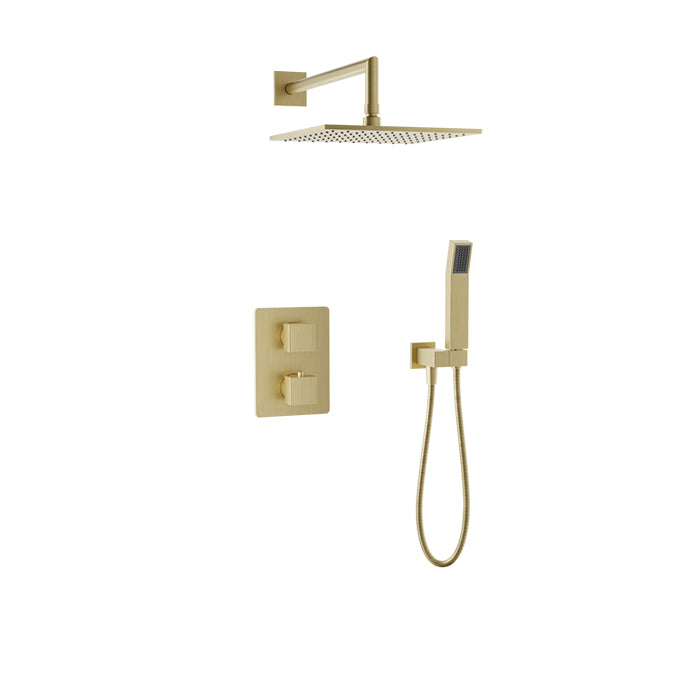

Baril Rec B05 Complete Thermostatic Pressure Balanced Shower Kit - PRO-4296-05

Discontinued - Baril Rec B05 Complete Thermostatic Pressure Balanced Shower Kit - PRO-4296-05

Thermostatic pressure balanced shower system with rain shower head and hand shower for precise temperature control and flexible showering.

Features

• Thermostatic pressure balanced valve maintains consistent water temperature
• Two accessories can operate together for versatile showering
• 3-spray hand shower for multiple spray options
• 10” square rain shower head for wide overhead coverage
• Maximum flow rate 2.0 gpm (7.6 L/min) @ 80 psi per accessory
• Optional non-shared configuration allows one accessory to operate at a time with reduced flow rate (1.75 gpm / 6.6 L/min)
• Part of the REC B05 collection

KIT COMPONENTS

• B05-9521-00-xx Complete Type TP Shower Valve With 2-Way Diverter
• TET-1011-01-xx 10” Square Shower Head
• BRA-1612-44-xx 16” Shower Arm
• DSP-2555-20-xx Hand Shower on Wall-Mounted Supply Elbow

TRIM & ROUGH CODES

• Trim Code: TRO-4296-05-xx
• Rough Code: RVA-9521-00-B or RVA-9521-P0-B

ECO OPTION (NON-SHARED PORT)

• PRO-4296-05-YYNS – Non-shared positions
• Trim Code (NS): TRO-4296-05-xx-NS
• Rough Code (NS): RVA-9521-00-NS-B or RVA-9521-P0-NS-B

Specifications

• Room: Bathroom
• Product Type: Shower System
• Style: Contemporary
• Hole Configuration: N/A
• Mounting Location: Wall Mount
• Installation Type: Wall Mount
• Flow Rate: 2.0 gpm (7.6 L/min) @ 80 psi per accessory

Certifications & Warranty

• Limited lifetime warranty.
