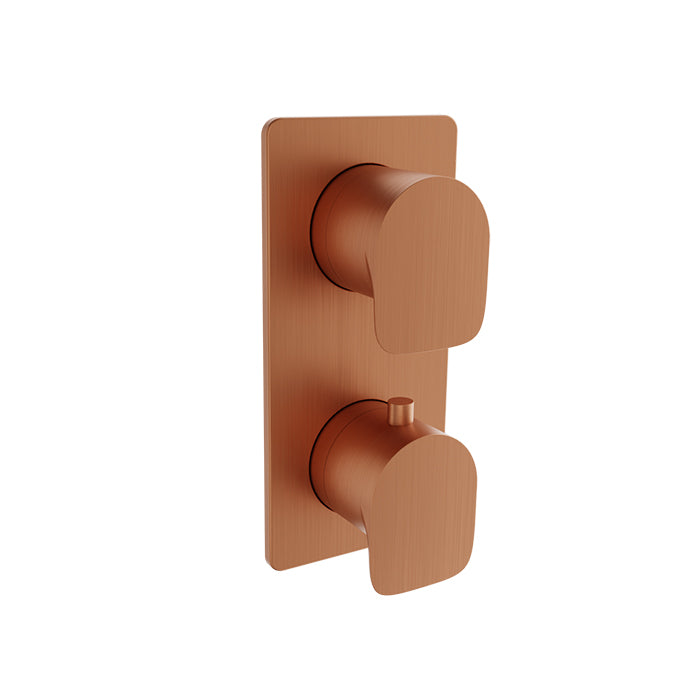

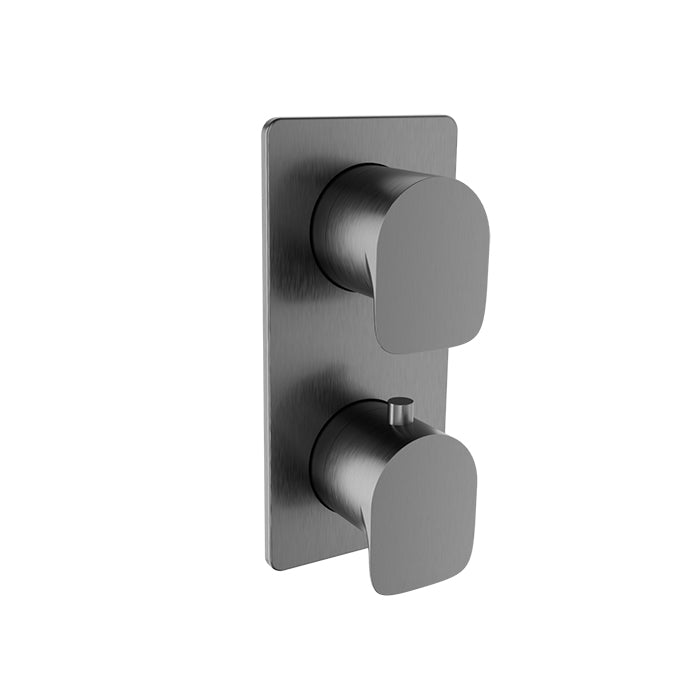

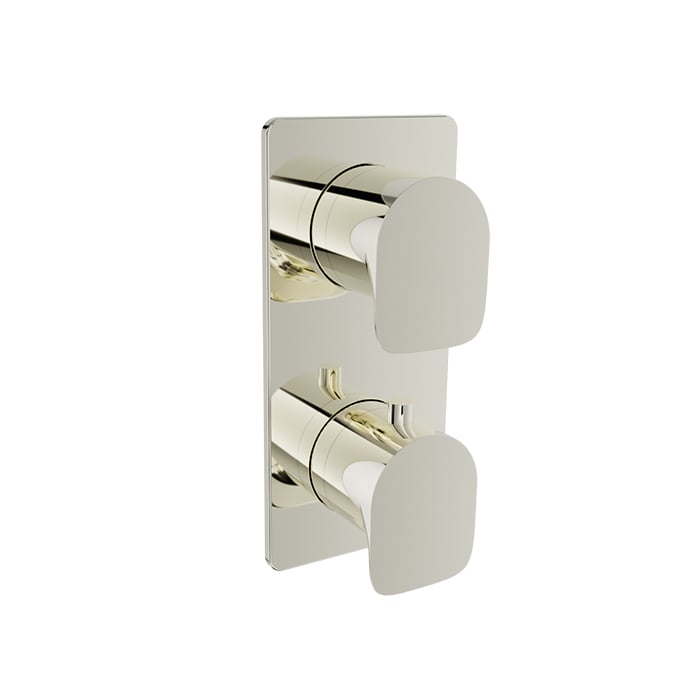

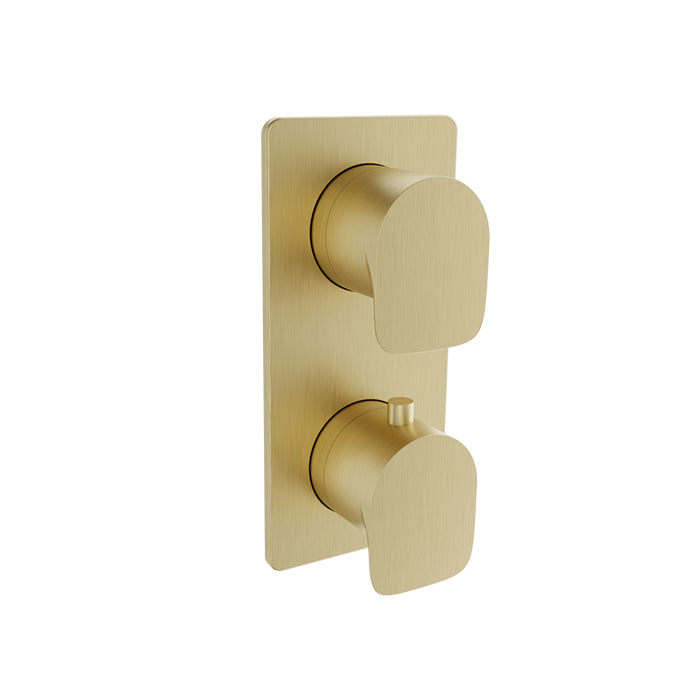

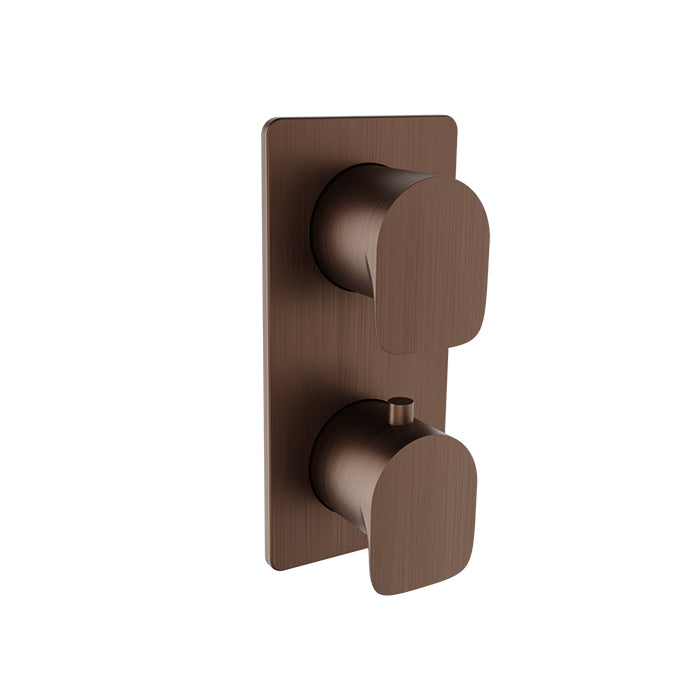

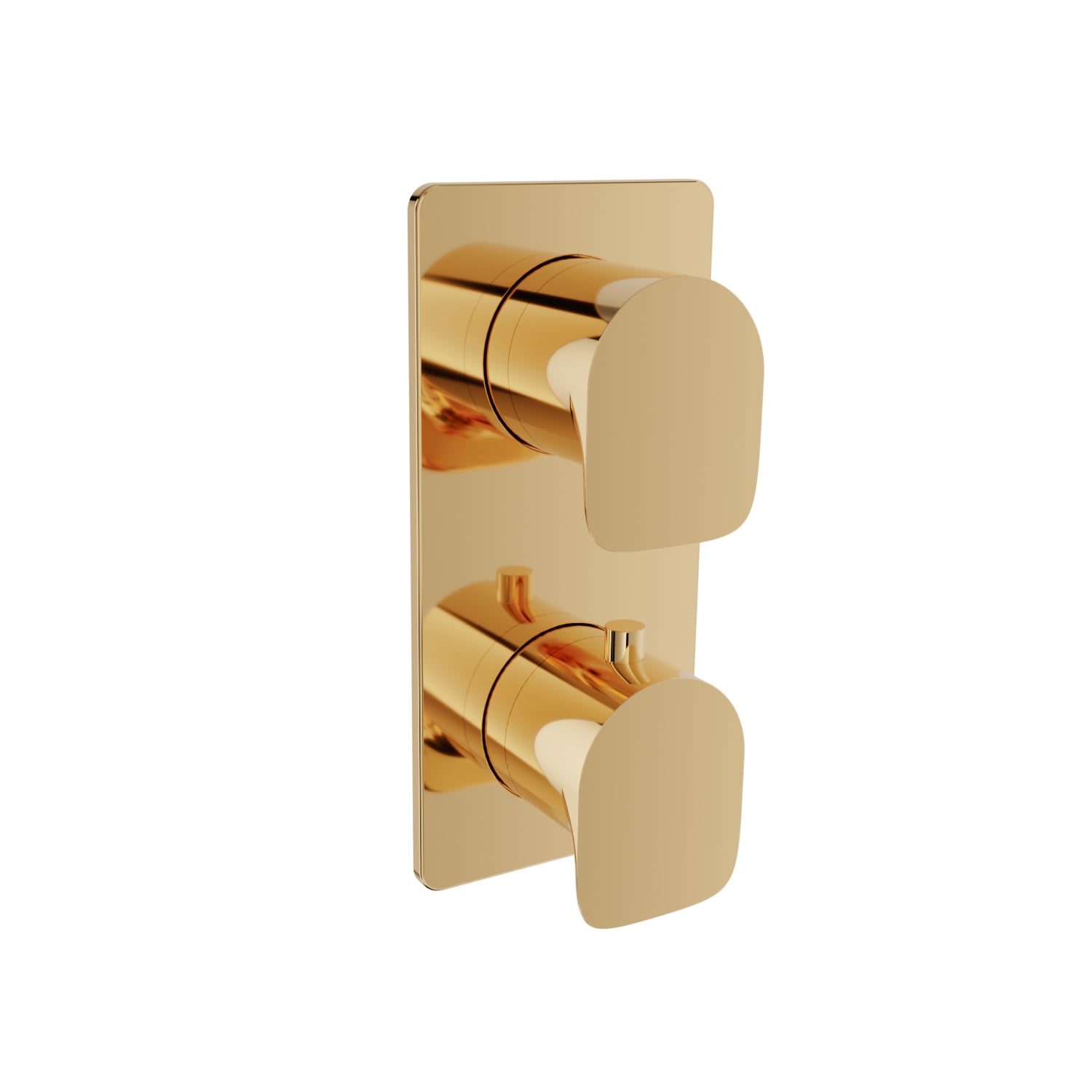

Baril Petite B04 Complete Thermostatic Pressure Balanced Shower Control Valve With 2-Way Diverter - B04-9521-00

Discontinued - Baril Petite B04 Complete Thermostatic Pressure Balanced Shower Control Valve With 2-Way Diverter - B04-9521-00

A compact thermostatic and pressure balanced shower control valve designed to operate up to two shower accessories with precise temperature control and smooth switching.

Features

• Thermostatic and pressure balanced control with 2-way diverter
• Supports up to 2 shower accessories
• Up to 2 accessories can be used at the same time (shared port configuration)
• Thin brass trim plate for a clean wall profile
• Reversible check / non-return valves for water supply inversion
• Large depth adjustment range for installation flexibility
• Rough valve RVA-9521-00-B included
• Rough valve included; trim and rough can also be ordered separately

Specifications

• Room: Bath
• Product Type: Thermostatic & Pressure Balance Shower
• Style: Transitional
• Hole Configuration: 1
• Mounting Location: Wall
• Installation Type: Wall
• Flow Rate (1 outlet): 7.1 GPM (27 L/min) at 60 PSI
• Flow Rate (2 outlets): 3.6 GPM (13.5 L/min) at 60 PSI

Trim & Rough Codes

• Trim Code: T04-9521-00-xx
• Rough Code (Shared Port): RVA-9521-00-B or RVA-9521-P0-B
• Rough Code (Non-Shared Port / NS): RVA-9521-00-NS-B or RVA-9521-P0-NS-B
• Eco-Friendly Option (NS): B04-9521-00-YYNS — one accessory operates at a time

Certifications & Warranty

• Backed by Baril manufacturer warranty.
