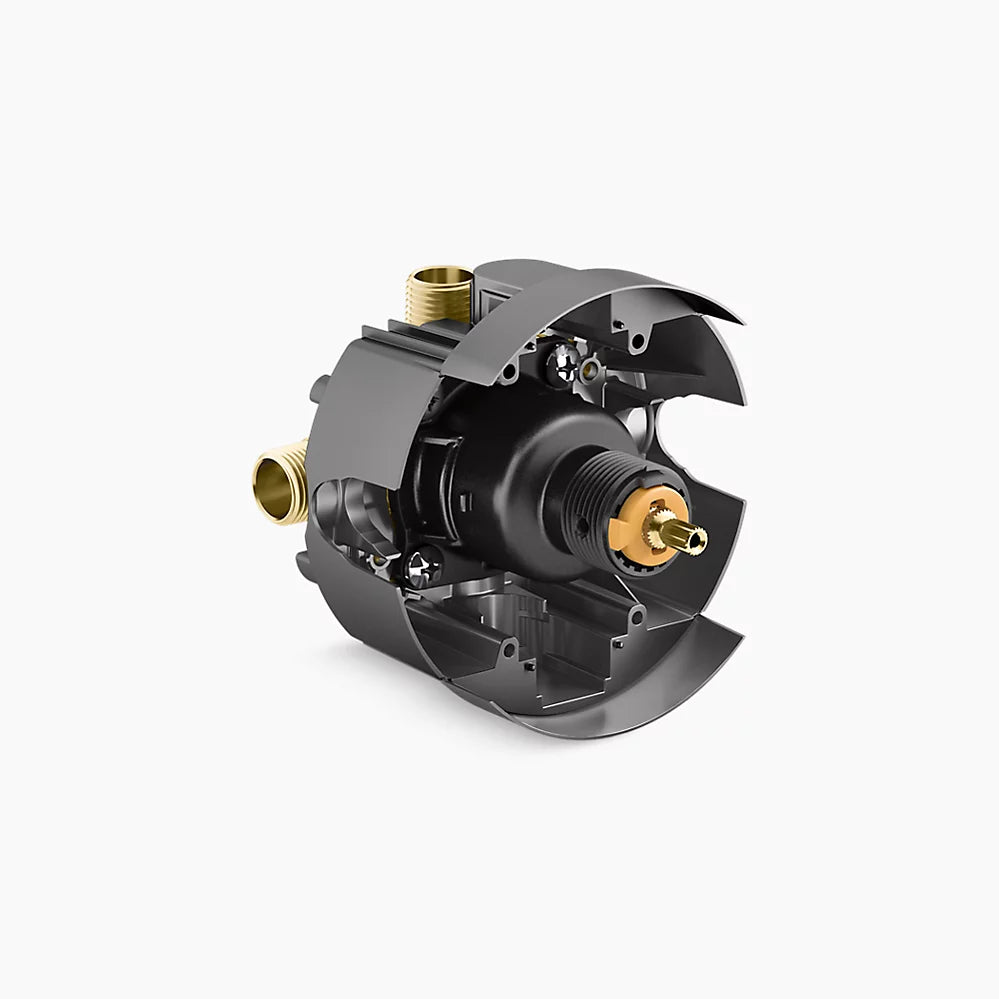

Kohler Rite-Temp Pressure-Balancing Valve Body And Cartridge Kit - K-8304-K-NA

Kohler Rite-Temp Pressure-Balancing Valve Body And Cartridge Kit – K-8304-K-NA

Reliable temperature control with Rite-Temp® pressure-balancing technology.

Features

• Includes valve body, pressure-balance cartridge, rough-in guide, and mudguard
• ½” universal NPT and direct sweat inlets and outlets
• 5.0 gpm (18.9 lpm) max flow rate at 45 psi
• Single-lever design cycles from off to cold to hot
• Antiscald protection
• One-piece cartridge design for easier installation and maintenance
• Adjustable high-temperature limit stop
• Requires trim to complete installation (sold separately)
• Pressure-balancing diaphragm keeps outlet temperature within ±3°F during water pressure fluctuations


Material

• Forged dezincification-resistant brass body for long-term durability and resistance to aggressive water conditions

Installation

• Suitable for standard, back-to-back, and thin-wall installations
• Integral mounting locations and symmetrical inlets for simplified installation
• Reversible cartridge for reversed hot/cold supply situations
• Rough-in guide supports both standard and thin-wall setups
• Installed rough-in can be flushed and pressure-tested to 150 psi max (air or water) using a test cap (sold separately)

Specifications

• Room: Bath
• Product Type: Valve
• Style: Modern
• Mounting Location: Wall
• Installation Type: In-Wall


Certifications & Warranty

• Limited lifetime warranty.
