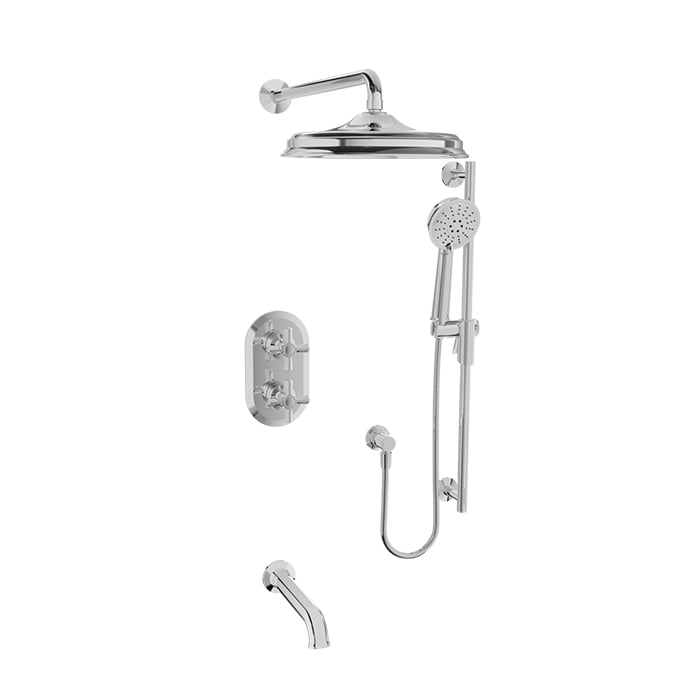

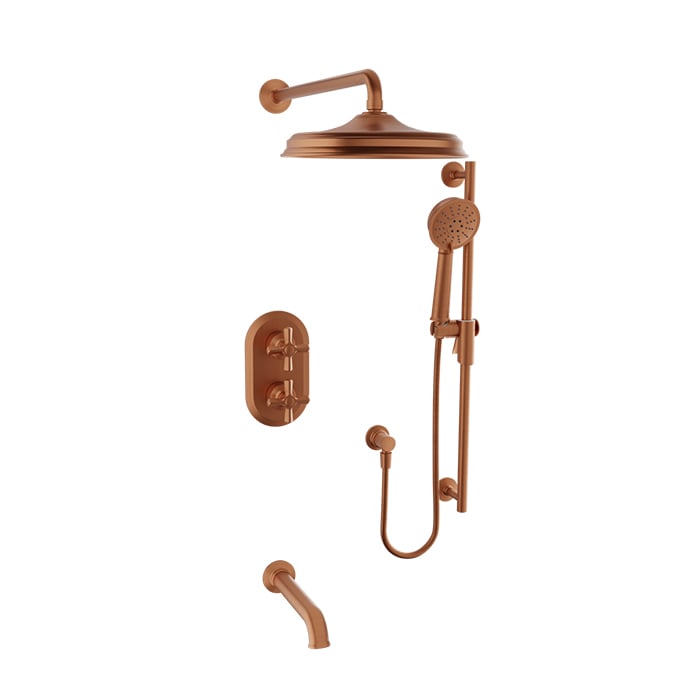

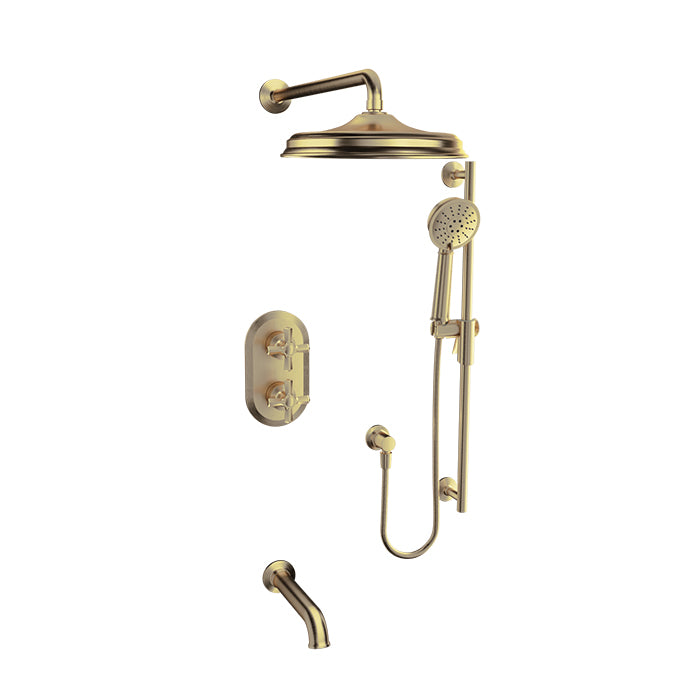

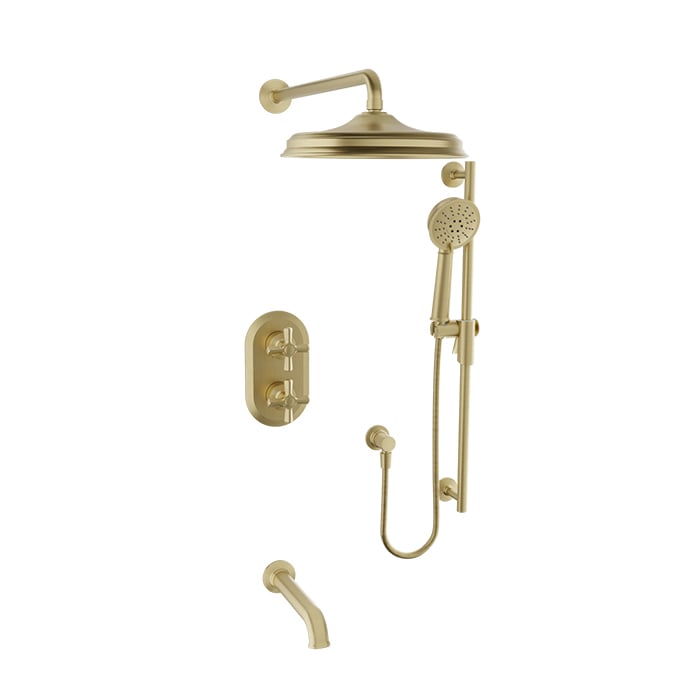

Baril Beaumont B20 Complete Thermostatic Pressure-Balanced Shower Kit - PRO-4303-20

Baril Beaumont B20 Complete Thermostatic Pressure-Balanced Shower Kit – PRO-4303-20

Complete thermostatic pressure-balanced shower system with tub spout, rain shower head, and multi-function hand shower.

Features

• Complete 3-accessory thermostatic pressure-balanced shower kit
• Includes tub spout, rain shower head, and sliding hand shower set
• 10” round shower head for generous coverage
• 3-spray hand shower with adjustable sliding shower bar
• Two shower accessories can operate simultaneously
• Thermostatic pressure-balanced valve helps maintain consistent water temperature
• Includes Beaumont tub spout without diverter
• 18” shower arm included
• Wall-mount supply elbow included
• Rough-in valve included for NPT or welded copper installations
• Trim and rough-in can also be ordered separately
• Available NS option allows one accessory at a time with reduced water consumption
• Wide selection of finish options available

Trim & Rough-In Options

• Trim Only: TRO-4303-20-xx
• NS Trim Only: TRO-4303-20-xx-NS
• Rough-In Valve: RVA-9501-00-B or RVA-9501-P0-B

Included Components

• RVA-9501-00-B 1-2-3-way TP rough-in valve
• T20-9532-01 trim for type P valve with 3-way diverter
• BEC-0520-20 tub spout without diverter
• TET-1020-01 10” round shower head
• BRA-1812-20 18” shower arm
• DGL-2068-53 3-spray sliding shower bar
• RAC-9001-49 wall-mount supply elbow

Specifications

• Room: Bathroom
• Product Type: Thermostatic Shower System
• Style: Modern
• Mounting Location: Wall
• Installation Type: Shower System
• Shower Head Size: 10”
• Shower Arm Length: 18”
• Hand Shower Spray Functions: 3
• Tub Spout Flow Rate: 7.1 GPM (27 LPM) at 60 PSI
• Shower Accessory Flow Rate: Max 2 GPM (7.6 LPM) at 80 PSI
• NS Option Flow Rate: 1.75 GPM (6.6 LPM) at 80 PSI
• Valve Type: Thermostatic Pressure-Balanced

Certifications & Warranty

• Limited lifetime warranty

Shop the Baril Beaumont B20 Shower Kit – PRO-4303-20 at e-unoia.com

DOCUMENTS & SPECIFICATION

Parts Breakdown: Here

Waterway Diagram: Here
