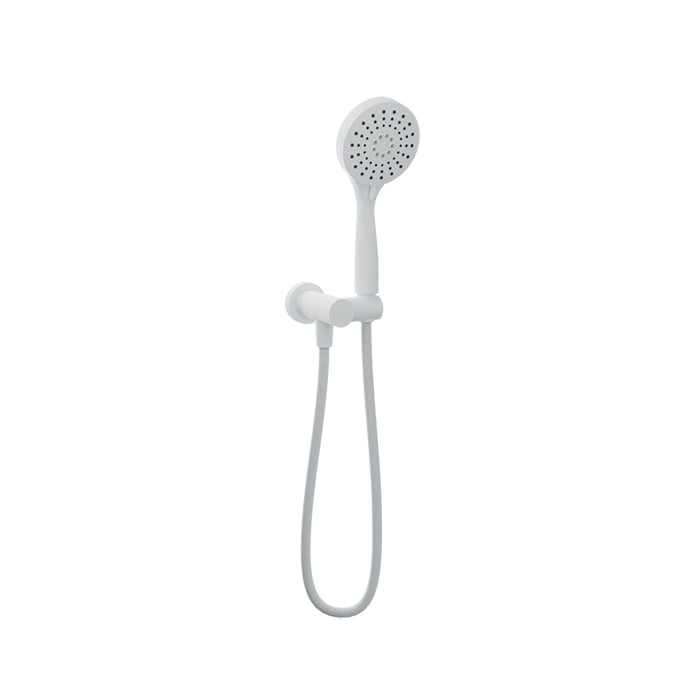

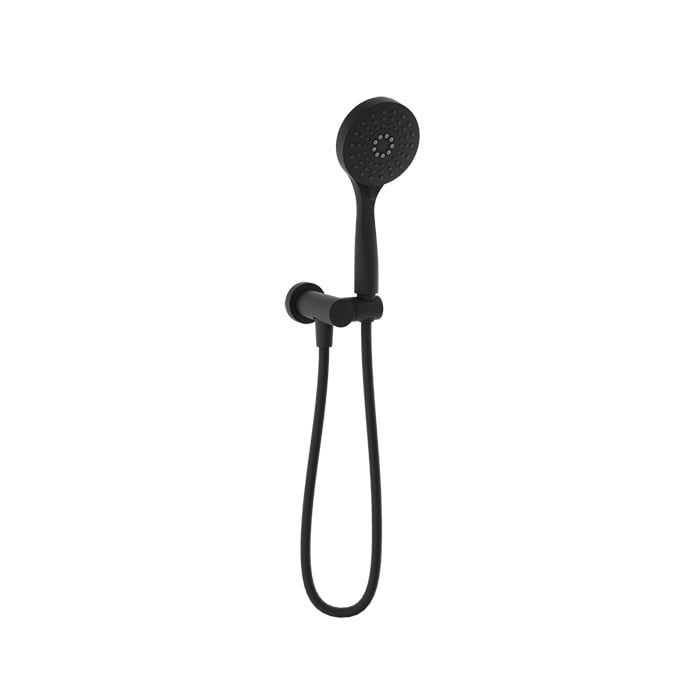

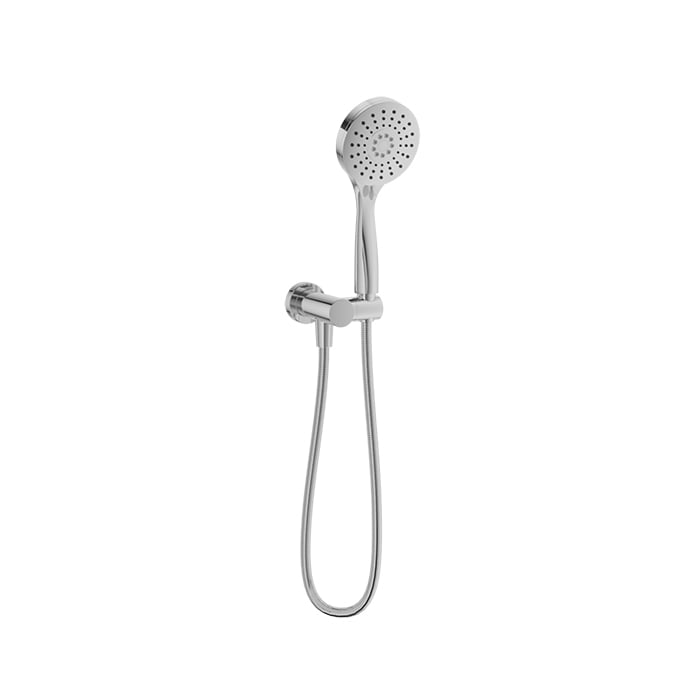

Baril 3-Spray Hand Shower on Wall-Mounted Supply Elbow - DSP-2566-19

Baril 3-Spray Hand Shower on Wall-Mounted Supply Elbow - DSP-2566-19

The Baril DSP-2566-19 pairs a three-spray hand shower with a wall-mounted supply elbow and a 59" flexible hose. Choose rain, massage, or a combination of both.

Features

• Three spray patterns: rain, massage, and a combination of both.
• Easy-clean nozzles.
• Brass wall-mounted supply elbow.
• 59" (150 cm) double-interlock flexible hose with a rotating nut and two non-return valves.
• PVC hose for Matte Black (KK); brass hose for other finishes.

Specifications

• Room: Bathroom
• Product Type: Hand shower with wall-mounted supply elbow
• Installation: Wall mount
• Spray functions: 3
• Maximum flow rate: 1.75 GPM / 6.6 L/min at 80 PSI
• Spray mechanism diameter: 4" (100 mm)
• Hose length: 59" (150 cm)
• Supply elbow connection: 1/2" female
• Hose connection: 1/2" female conical nut
• Model: DSP-2566-19

Included Components

• 3-spray hand shower.
• Wall-mounted supply elbow.
• 59" (150 cm) flexible hose.

Eco-Friendly Options

• DSP-2566-19-xx-150: maximum 1.5 GPM / 5.7 L/min at 60 PSI.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
